DIY Pergola Foundation Options for Sloped and Uneven Yards

Introduction: Why Foundation Matters for Sloped Terrain

A solid foundation is the difference between a pergola that looks level and lasts, and one that slowly twists, leans, or settles—especially on a slope. When planning a pergola foundation sloped yards demand careful load transfer and moisture management, because gravity, water flow, and soil movement are working against you. Getting the base right protects your investment, your safety, and the structure’s appearance over time.

On uneven ground pergola installation introduces unique risks you can’t fix later with cosmetic tweaks:

• Racking and sway from wind loads when posts aren’t truly plumb or footings vary in stiffness.
• Frost heave and seasonal movement when footings don’t reach code-required frost depth.
• Erosion undermining shallow or poorly drained footings on the downhill side.
• Out-of-square frames that cause warped beams, noisy hardware, and uneven shade slats or roof panels.
• Water shedding toward posts, accelerating wood decay at base connections.

Consider a 12'x16' pergola across an 8% grade—one corner can sit 12 inches lower than the opposite. A sloped yard pergola footing plan might use stepped concrete piers to maintain equal beam heights, helical piles to reach stable strata on fill slopes, or a grade beam tying downhill piers to resist lateral creep. Adjustable pergola post foundation hardware can fine-tune elevation and plumb, but it must pair with correctly sized footings; shims alone aren’t a substitute. Proven pergola leveling techniques include setting a laser reference line, matching pier top elevations to that line, and only then bolting post bases, verifying square with diagonal measurements before framing.

Zen Pergolas’ bracket-based kits (4x4 or 6x6) are designed to mount to engineered bases—cast-in-place concrete, helical piles with caps, or reinforced deck frames—making them a practical choice for sloped terrain outdoor structures. Clear instructions address footing layout and post alignment for uneven sites, helping DIYers meet local code depth and drainage best practices. For larger spans where loads and tolerances are magnified, such as Zen Pergolas’ Large pergola kits, foundation precision becomes even more critical to prevent deflection and long-term movement.

Understanding Your Yard's Slope and Grade

Grade is the measure of how much your yard rises or falls over a distance, and it directly affects layout, drainage, and structural load paths. For a pergola foundation sloped yards introduce two challenges: a consistent incline across the build area and localized irregularities like dips, mounds, or settled fill. Distinguish between the overall slope you’ll design around and small high/low spots you’ll correct during site prep.

Start with a quick site survey to quantify slope and direction:

• Drive two stakes at the high and low ends of your planned footprint; stretch a tight string between them and level the string with a line level, laser, or water level.
• Measure the vertical difference (rise) from the ground to the leveled string at each stake and note the horizontal distance (run) between stakes.
• Calculate grade: rise ÷ run × 100. Example: 6 inches over 12 feet = 4% grade.
• Repeat the measurement along both axes of the pergola and across diagonals to spot uneven pockets that affect uneven ground pergola installation.

Interpret your findings before choosing footings. A mild 1–2% grade is common for drainage and usually needs minor excavation or stepped bases; 3–6% calls for more pronounced height adjustments; over 6% often benefits from partial regrading or engineered solutions. Also note soil type, compaction, and water flow—sloped terrain outdoor structures perform best when footings bear on undisturbed soil below frost depth and are kept away from concentrated runoff.

Match your slope to practical support strategies and pergola leveling techniques:

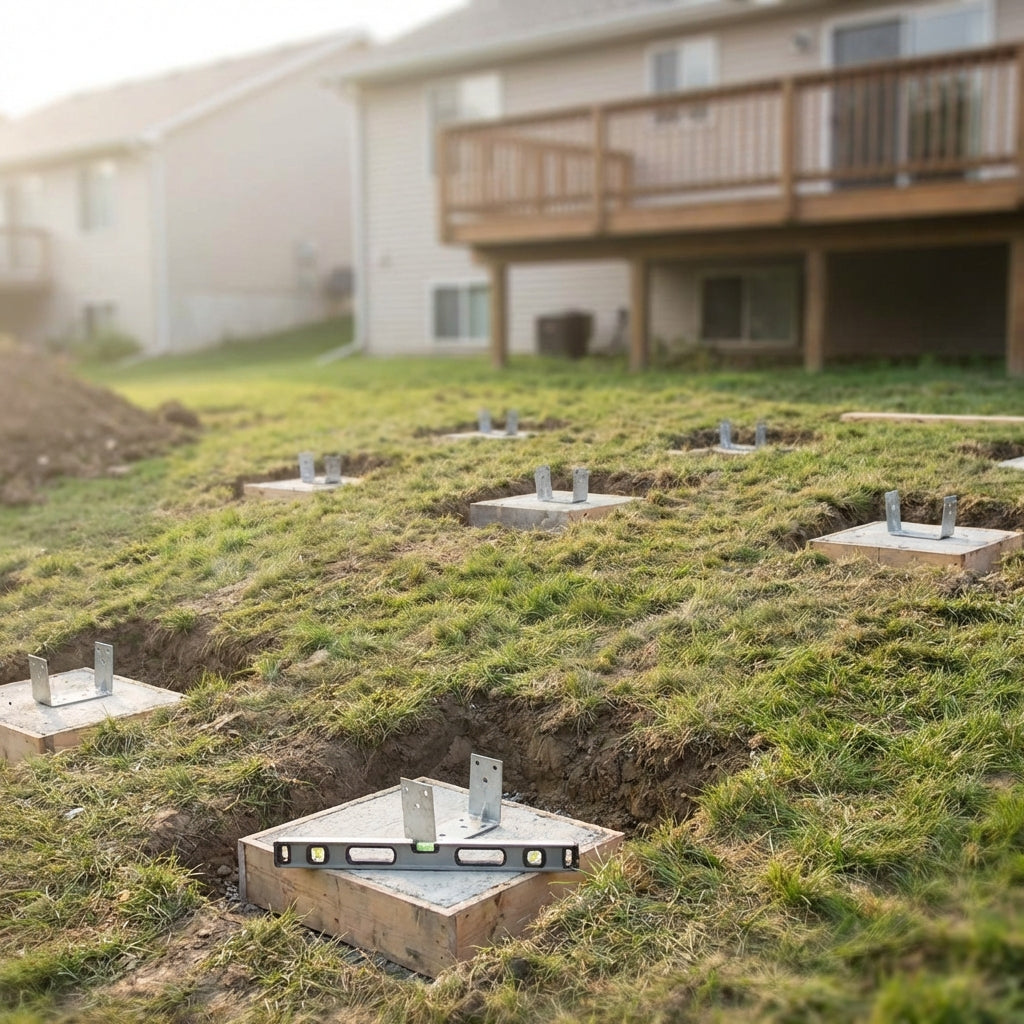

• Stepped concrete piers/sonotubes with tops set to different elevations for a sloped yard pergola footing.
• Ground screws or helical piers that can be installed to consistent top-of-foundation heights—an adjustable pergola post foundation without large pours.
• Adjustable post bases and shims on a slab or grade beam (within manufacturer limits) to fine-tune post plumb and beam height.
• Selectively cut post lengths so the beam tops align level while footings follow the grade, or lightly regrade to reduce extremes.

Zen Pergolas kits are well-suited to these approaches—posts can be cut to accommodate stepped footings, and the 4x4 or 6x6 bracket options provide sturdy connections on varied foundations. Use the Pergola Kit Finder to size your frame to the measured span and slope before you dig.

Assessing Soil Type and Drainage Conditions

Before choosing a pergola foundation for sloped yards, verify what’s underfoot. Soil type and drainage dictate bearing strength, frost movement, and long-term stability—especially critical for uneven ground pergola installation where loads aren’t perfectly vertical. Skipping this step leads to settlement, tilt, and fastener stress that even the best hardware can’t fully overcome.

Identify your dominant soil. Sandy soils drain well but can ravel on slopes and need confinement; silts and clays retain water and can expand or pump under loads; mixed loams are usually most stable. Simple field checks help: squeeze a damp handful (clay holds shape and ribbons; sand crumbles), dig a small test hole to inspect layers, and confirm you’re building on undisturbed native soil, not fill.

Evaluate drainage patterns before setting a sloped yard pergola footing. After a rain, trace where water concentrates; aim for 2% surface fall away from footings. Try a quick percolation test: fill a 12-inch-deep hole with water, let it drain, refill, and measure drop per hour—less than 0.5 in/hr signals poor infiltration, over 2 in/hr is favorable. In cold climates, poor drainage plus freeze-thaw amplifies heave; plan to reach local frost depth regardless of slope.

Match foundation to conditions and use pergola leveling techniques to reconcile grade. In clay or slow-draining soils, use deeper, larger-diameter bell-shaped concrete piers or helical piles, and keep post bases 1 inch above concrete to prevent water wicking. In sandy or granular soils, consider wider piers or ground anchors with compacted, well-graded gravel. On slopes, step pier elevations and level posts with adjustable pergola post foundation hardware or non-shrink grout shims—never stack wood shims outdoors.

Quick checklist before you dig:

• Call 811 to locate utilities and verify setback and frost-depth codes.
• Probe with a hand auger to map soil layers and reach competent bearing.
• Divert roof/downspout water and add swales or French drains if runoff targets your site.
• Use geotextile and compacted gravel under pads to separate fines and improve drainage.
• Specify hot-dip galvanized anchors and brackets for longevity in wet zones.

Zen Pergolas kits pair cleanly with common concrete pier anchors and wall-mount solutions, and their 4x4 or 6x6 bracket options simplify hardware selection for sloped terrain outdoor structures. On steep grades, a wall-mounted or corner configuration can reduce the number of footings you need without compromising stability. Use the Pergola Kit Finder to size your structure confidently, then choose foundations that fit your soil and drainage realities.

Foundation Option 1: Adjustable Post Brackets and Shims

Adjustable post brackets paired with non-compressible shims are a precise, low-disruption way to create a pergola foundation for sloped yards. This approach works on existing concrete patios that are intentionally pitched for drainage and on new footings that land at slightly different elevations. For example, a 12' wide patio sloped 1/4" per foot can introduce a 3" height difference across posts; using shims under base plates and careful layout keeps the beam line perfectly level for an uneven ground pergola installation.

Start by establishing a level reference line with a laser or taut string, then mark post centers to match your pergola footprint. Set concrete anchors and install adjustable post bases; many have slotted holes to fine-tune layout before tightening. Use stainless steel or composite shims under the base plates to compensate for the slab’s pitch, and check each post for plumb in two directions before final torque. Where gaps exceed thin shims, pack under the plate with non-shrink grout to distribute load and seal out water.

For a stable adjustable pergola post foundation on sloped terrain, follow these best practices before you raise beams and rafters:

• Use hot-dip galvanized or stainless hardware near soil or salt exposure to limit corrosion.
• Prefer composite or stainless shims; avoid stacked wood shims that can crush or wick moisture.
• On older slabs, consider epoxy-set anchors for stronger hold in questionable concrete.
• Hide shims and base plates with post skirts for a clean finish and improved splash protection.
• If the slope is significant, step footing elevations so each base sits close to level, then shim minimally.

This method excels for moderate grade changes and for free-standing or wall-mounted layouts where you want minimal demo and fast setup. If your sloped yard pergola footing would require tall stacks of shims or exceeds a few inches of correction per post, shift to stepped piers or grade beams. Zen Pergolas kits are compatible with common 4x4 and 6x6 bases, and their Pergola Kit Finder can help you select sizes and mounting options that align with your slab or footing plan. It’s a reliable, DIY-friendly path to professional results using proven pergola leveling techniques for sloped terrain outdoor structures.

Foundation Option 2: Concrete Footings on Sloped Ground

Concrete piers or footings are the most dependable choice for a pergola foundation sloped yards because each column can be poured to a different height while creating a single, level plane for posts. Use sonotube forms set below frost depth, then “step” the tops to a consistent elevation using a laser or string line. For example, on a 12-foot run with a 10% grade (about 14 inches of drop), your downhill footings will simply extend higher above grade to meet level.

Plan for code requirements first: call 811 to locate utilities, verify frost depth, and confirm footing sizes for wind and snow loads. A common starting point is 12-inch diameter piers for 4x4 posts and 16-inch for 6x6, with rebar cages and at least two vertical bars tied to a hoop; always confirm with your local building department. On steeper slopes, a belled base or larger downhill sloped yard pergola footing can improve resistance to overturning and lateral pressure.

Typical sequence for uneven ground pergola installation:

• Establish a level reference with batter boards and a laser.
• Lay out post centers, then auger holes plumb and to depth.
• Add 4–6 inches of compacted gravel for drainage; set sonotube forms.
• Install rebar, pour 3,000–4,000 psi concrete, and vibrate to remove air.
• Set post bases or threaded inserts while wet, aligned to your reference.
• After curing, check elevations and fine-tune with an adjustable pergola post foundation.

Good pergola leveling techniques include using non-shrink grout under base plates (instead of wood shims) and keeping pier tops 4–6 inches above grade with a slight crown to shed water. On very steep or erosive sites, add surface drainage (swales or drains) and consider tying pairs of downhill piers with a short grade beam per an engineer’s guidance. These steps improve longevity for sloped terrain outdoor structures.

Zen Pergolas kits pair seamlessly with concrete footings, offering 4x4 and 6x6 bracket options and clear post layouts that simplify site marking and anchoring. If you’re unsure which size or post configuration fits your slope and space, the Pergola Kit Finder helps you choose a design that installs cleanly on stepped footings, with free shipping from Boise, ID.

Foundation Option 3: Helical Anchors for Steep Slopes

Helical anchors—also called ground screws or screw piles—are a strong option when tackling a pergola foundation on sloped yards. Instead of digging stepped concrete footings, you drive steel shafts with helical plates into undisturbed soil until they reach load-bearing strata, making them ideal for uneven ground pergola installation with minimal excavation. They handle uplift and lateral forces well, which is critical on windy sites and sloped terrain outdoor structures.

Capacity is verified by installation torque, so each anchor is advanced until a target torque correlates with the required load. Extensions allow you to penetrate deeper on the downhill side, equalizing capacity even when grade drops quickly. For example, a 12' x 16' pergola on a 15–20% slope might use 5–7 ft anchors upslope and 8–10 ft downslope to hit frost depth and consistent torque.

Accurate layout and elevation control are key pergola leveling techniques. Snap lines and use a rotary laser to mark anchor locations at plan spacing, then set anchors plumb and to varying finished heights to match the slope. Install adjustable post bases on the anchor caps so you can fine-tune each support and create a perfectly level beam line, delivering an adjustable pergola post foundation without stepped concrete.

Pros and considerations:

• Minimal soil disturbance and no forms; immediate load-bearing with no cure time.
• Works on steep grades where traditional sloped yard pergola footing solutions are impractical.
• Requires a torque driver (hydraulic or high-torque electric); many homeowners hire a pile installer for a half day.
• Coordinate anchor type, caps, and post bases; verify ratings for vertical, lateral, and uplift loads.
• Always check local code, frost depth, and wind/snow requirements; consider engineering for large spans.

Zen Pergolas kits pair well with helical anchor caps using compatible surface-mount post bases, and their 4x4 or 6x6 bracket options make it straightforward to secure posts on variable elevations. Use the Pergola Kit Finder Tool to select the right size and layout for a sloped site, then mount to your anchors for a clean, professional result. If you’re unsure about anchor selection, a local helical installer can size piles while you focus on assembling the kit—delivered with clear instructions and free shipping from Boise, ID.

Foundation Option 4: Ground-Level Adjustment Systems

Ground-level adjustment systems let you create a stable base without major excavation, making them a strong choice for a pergola foundation sloped yards can accommodate. Common approaches include self-leveling deck pedestals under a floating beam frame, height-adjustable post bases mounted on concrete pads, and ground screws with brackets that fine-tune height at each support. These solutions “dial in” elevation at the base, so posts remain plumb and beams sit perfectly level across uneven terrain.

For uneven ground pergola installation on mild to moderate slopes, verify that every component is rated for structural posts, uplift, and lateral loads—not just for pavers. In freeze-thaw zones or wind-prone sites, ground screws or anchored concrete pads typically outperform free-floating pedestals. A sloped yard pergola footing must either extend below frost depth (concrete pier) or transfer loads to stable soils (helical/ground screw), while an adjustable pergola post foundation provides the fine height control needed for final leveling. Always follow local code and manufacturer load tables.

Use these pergola leveling techniques to streamline layout and setup:

• Snap strings or use a laser level to set finished beam height; record height deltas at each post.
• Choose supports to match conditions: ground screws for deeper bearing, or pedestals/pads on compacted gravel where allowed.
• Assemble adjustable brackets; set initial heights with leveling nuts or threaded collars, then fine-tune plumb.
• Shim only with structural, non-compressible materials; avoid wood shims at grade.
• Recheck diagonals for square, then lock all fasteners and re-verify level after preloading the frame.

Example: On a 12'x16' site with a 5-inch fall, six ground screws with adjustable U-brackets can set post bases at exact elevations, minimizing cuts while resisting uplift on sloped terrain outdoor structures. Zen Pergolas kits pair cleanly with these systems, offering 4x4 or 6x6 bracket options and clear post layouts that simplify height adjustments. Not sure which route to take? The Pergola Kit Finder helps match kit size and hardware to your slope, site, and wind exposure.

Site Preparation and Leveling Techniques

Getting the grade right starts with a clear survey. Use a laser level or a 4-foot level on a 10–12-foot straight board to measure fall over run and note the high and low corners; a 6-inch drop over 12 feet is a 4% slope. Mark utilities (call 811), map drainage paths, and decide whether water should bypass the build area or be managed with a shallow swale or French drain.

Lay out the footprint with batter boards and string lines set to a single reference height. Square the layout using the 3-4-5 method and verify diagonal measurements match. Mark footing centers directly below string intersections—this keeps post locations true even during an uneven ground pergola installation.

Choose a leveling strategy that matches the grade and soil:

• Cut-and-fill terrace pads: Excavate the high side, use excavated soil to build the low side, then compact in 2–3 inch lifts. Add geotextile and 4–6 inches of compacted gravel if you’ll surface-mount bases.
• Stepped concrete piers: Dig sonotube piers to frost depth, setting top elevations in “steps” that follow the hill; keep beam height consistent for a level frame. This is a reliable sloped yard pergola footing approach.
• Deep/short pier mix: Bring all pier tops to one level plane by extending low-side pier height; set adjustable pergola post foundation hardware to fine-tune plumb.
• Slab or paver pads: On mild slopes, create level benches for each pad; never rely on pavers sitting on uncompacted fill.

Prepare the subgrade by stripping sod and organic matter, then compacting to a firm surface—aim for at least two passes with a plate compactor. Maintain a 2% grade away from footings to protect concrete and brackets. For sloped terrain outdoor structures, add perimeter gravel to reduce splash and frost heave risk.

As you set posts, brace them in two directions and confirm plumb with a level. Use adjustable metal post bases or non-shrink grout under base plates to correct minor elevation discrepancies, and recheck string lines and diagonals before tightening hardware—these are durable, repeatable pergola leveling techniques.

Zen Pergolas kits are compatible with common footing methods and come in 4x4 or 6x6 bracket sizes, making it simple to pair posts with stepped piers or surface-mount bases where appropriate. The Pergola Kit Finder helps you select a free-standing or wall-mounted design and size that fits your grade, and if you’re adding privacy walls, you can plan deeper footings to handle added wind load.

Installation Best Practices for Uneven Terrain

Start by surveying the grade and soil. For a durable pergola foundation in sloped yards, measure rise over run with a laser level or builder’s level to understand how much the site drops across the footprint. Note soil type and drainage; clay amplifies frost heave and poor percolation, while sandy loam drains well. Plan to divert water away from footings with swales or a gravel trench so runoff doesn’t undermine posts.

Choose a footing strategy matched to the slope and load. For most uneven ground pergola installation scenarios, stepped concrete piers (sonotubes) to frost depth are reliable; stagger pier heights to bring all post bases to one level plane. On steeper grades or expansive/clayey soils, helical piles with adjustable caps offer an adjustable pergola post foundation that resists uplift and lateral creep. For wide spans across a hill, a shallow grade beam (reinforced concrete tying piers together) can improve racking resistance for sloped terrain outdoor structures. Reserve deck blocks for slight slopes (≤2%) on compacted, levelled gravel pads only.

• Snap a level reference line with a laser or water level at the highest corner and transfer that datum to each footing location.
• Square the layout using the 3-4-5 method and verify diagonals match.
• Form and pour piers to the marked elevations, or set helical piles, then fine-tune with adjustable post bases where allowed by code.
• Backfill around footings with free-draining gravel and slope grade 2% away to shed water.
• Set and brace posts plumb; use pergola leveling techniques by trimming post tops to a shared plane before installing beams.
• Recheck level and plumb after concrete cures and before final fastening.

Zen Pergolas kits install cleanly on these footing types and come in 4x4 or 6x6 bracket sizes, making post selection straightforward on sloped yard pergola footing layouts. If adding privacy walls or a larger 24'x24' frame, upsize footings to handle increased wind load. Not sure which configuration fits your site? The Pergola Kit Finder Tool helps match free-standing or wall-mounted designs to your slope and space.

Always check local codes, call 811 before digging, and build to frost depth where applicable for long-term stability.

Common Mistakes to Avoid

Planning a pergola foundation sloped yards demand extra care because gravity and water magnify small mistakes. On sloped terrain outdoor structures, poor foundations lead to racking, frost heave, and drainage issues that are costly to fix.

• Using surface deck blocks or loose pavers on a slope. They can creep downhill; use stepped concrete piers or engineered ground screws rated for sloped installations instead.

• Ignoring soil and drainage. Avoid swales, add 4–6 inches of compacted gravel beneath piers, and redirect runoff with a shallow swale or French drain so water doesn’t undercut footings.

• Inconsistent embedment below frost depth. Step downhill piers so every footing reaches or exceeds local frost depth (e.g., 36 inches) to prevent heave.

• Leveling by cutting posts instead of the base. Establish consistent top-of-pier elevations and use adjustable post bases for fine tuning; unevenly shortened posts invite racking and uneven beam lines.

• Eyeballing layout on uneven ground. Use batter boards, string lines, diagonal measurements, and a rotary laser to square the plan and set true heights.

• Undersizing hardware and footings. Larger spans or privacy walls often demand 6x6 brackets and 12-inch sonotubes with rebar, not 4x4 brackets on 8-inch piers.

• Setting posts or beams before concrete cures. Protect pier tops from rain, wait the recommended cure time, and verify anchor locations before loading the structure.

For sloped yard pergola footing, favor “stepped” elevations rather than trying to chase the grade with post cuts. For example, across a 12-foot run with a 10-inch drop, break the grade into two 5-inch steps so all pier tops share one level reference; mark heights with a laser and tie rebar cages before the pour. These pergola leveling techniques work best when paired with an adjustable pergola post foundation to fine‑tune the last 1/2–1 inch.

Zen Pergolas kits simplify uneven ground pergola installation with 4x4 and 6x6 bracket options and multiple free‑standing, wall‑mounted, or corner layouts. Use the Pergola Kit Finder to match spans and hardware, then pair your kit with the footing system your site and local code require; their clear instructions help you plan layout and avoid the pitfalls above.

Maintaining Your Pergola Foundation Long-Term

Slopes concentrate water and create uneven loads, so plan to inspect your pergola foundation at the start of spring and again after major storms or freeze–thaw cycles. Look for differential settlement, posts that have drifted out of plumb, and any racking at beam connections. These checks are especially important for any pergola foundation sloped yards.

Control runoff before it reaches your footings. Keep gravel aprons intact, clear swales and French drains, and redirect downspouts at least 6–10 feet away. Pull mulch and soil 3–4 inches back from metal bases to prevent corrosion, and top up joint sand on adjacent pavers to limit washout.

Check each sloped yard pergola footing for movement or cracking. Tighten anchor bolts and structural screws, and spot-treat chipped powder coating on brackets to prevent rust. If you used an adjustable pergola post foundation or pedestals, re-level by turning the adjusters incrementally and rechecking plumb with a 4-foot or laser level.

Use simple pergola leveling techniques to keep the frame square and stable over time:

• Re-shim non-adjustable bases with composite shims or non-shrink grout under base plates.
• Add or re-tension temporary diagonal bracing, then resecure permanent connections once square.
• For paver or slab installs, recompact bedding sand beneath any rocking surface-mount anchors.
• Where settlement persists, terrace the grade or add a short retaining edge to stop soil creep.

Document measurements yearly—note beam-to-ground heights at each corner and post plumb readings—to spot gradual change. If yours began as an uneven ground pergola installation, small seasonal tweaks are normal; sudden shifts warrant a deeper look at drainage and soil support. Zen Pergolas kits pair robust 4x4 or 6x6 steel brackets with clear guidance, making ongoing care on sloped terrain outdoor structures more straightforward, and their team can help you choose hardware that stands up to site conditions.

Conclusion: Building a Stable Pergola on Any Grade

A stable pergola on a hill or bumpy lawn is absolutely achievable when you match the footing to your site conditions and use precise layout. For a pergola foundation sloped yards often benefit from stepped concrete piers (sonotubes) set below frost depth, helical piers where soil is questionable, or a reinforced grade beam with standoff brackets on very uneven runs. Prioritize drainage with 4–6 inches of compacted gravel around footings, and avoid burying wood posts—use steel post anchors to keep timber dry and long‑lasting.

Accuracy is your ally on uneven ground pergola installation. Snap stringlines, establish a benchmark with a laser level, and mark consistent heights on batter boards so every bracket top lands in the same plane. Pair that with pergola leveling techniques like using adjustable pergola post foundation hardware or non‑shrink grout under standoff bases to fine‑tune elevations by 1/8–1/2 inch without cutting posts on-site.

Use this quick footing guide to match slope and soil:

• Gentle slope (<3%): Standard drilled piers; trim post lengths for final level.
• Moderate slope (3–10%): Stepped sonotubes at staggered heights; tie adjacent piers with short grade beams if needed.
• Steep slope (>10%) or fill soils: Helical piers to refusal, or a continuous grade beam pinned into undisturbed soil.
• Expansive clay/high water table: Helical piers or belled caissons to resist uplift and heave.
• Added loads (privacy walls/solid roofs): Deeper and wider sloped yard pergola footing, and consider upsizing to 6x6 posts and brackets for lateral stiffness.

Zen Pergolas kits pair cleanly with all of these foundations, whether you choose free‑standing, wall‑mounted, or corner layouts. Their 4x4 and 6x6 bracket systems make it easy to anchor to concrete piers, grade beams, or helical caps, and the Pergola Kit Finder helps you select the right size and configuration for sloped terrain outdoor structures. Plan the footing, set your elevations, and your frame will assemble square, plumb, and level—no matter the grade.
