Top 7 Foundation & Footing Options for Sloped Yards

Concrete Pier Footings for Sloped Terrain

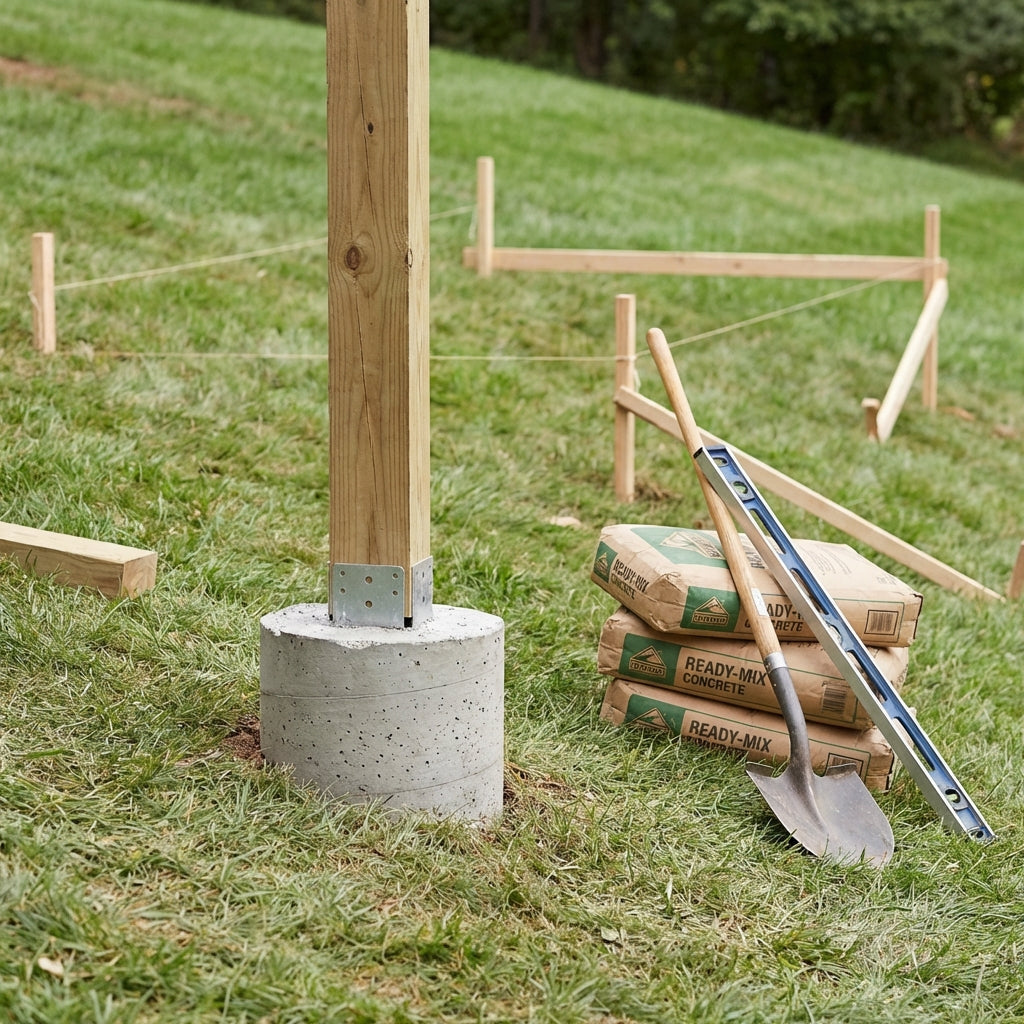

Concrete piers are one of the most reliable pergola foundation options for sloped yards because they isolate point loads and let you fine-tune elevation pier by pier. By setting the tops of your piers to a common height (or stepping them in controlled increments), you can achieve a level, rigid base for a sloped yard pergola setup without major grading. They pair well with 4x4 or 6x6 posts and bracket systems used in DIY pergola kits, including those from Zen Pergolas.

Start by establishing your target top-of-beam elevation using a laser level or tight string line. Mark pier centers from your pergola layout, then measure grade changes to calculate each pier’s top height. For example, if your site drops 18 inches over a 12-foot span, you can either pour two piers 18 inches taller on the low side (above grade) or perform a stepped footing installation where adjacent piers differ by measured increments to minimize exposed concrete.

A solid concrete pier installation on uneven ground follows a clear sequence:

• Confirm local frost depth and minimum diameters; 10–12 inches is common for 4x4 posts, 12–16 inches for 6x6 (verify with code and soil conditions).
• Auger holes to frost depth and bell the bottom in soft soils if needed for bearing; avoid loose backfill.
• Set sonotubes cut to your target pier heights and brace them plumb to your control line.
• Place a simple rebar cage (e.g., two to three #4 verticals with ties), keeping steel off soil and away from tube walls.
• Pour 3,000–4,000 PSI concrete, vibrate or rod to consolidate, and finish tops dead level to your string/laser.
• Embed anchor bolts while wet or drill and set mechanical anchors after cure. Use standoff post bases to maintain at least 1 inch of clearance above concrete for moisture protection.

On steep slopes, keep above-grade pier exposure reasonable to limit slenderness; taller piers may need larger diameters, additional reinforcement, or stepped groupings for stability. In expansive or questionable soils, helical pier mounting is a strong alternative that avoids large excavations and provides predictable capacity—caps accept standard post bases or bracket plates. Good drainage matters too; slope concrete tops slightly or use standoffs so water sheds and posts stay dry.

Zen Pergolas kits are engineered to mount cleanly to concrete or helical foundations with robust 4x4 or 6x6 brackets, and their Pergola Kit Finder helps you size posts and spans before you dig. Planning a compact build? This Freestanding pergola footing example shows how a 4x4-frame pergola can land on precisely placed piers for a professional, level result on uneven terrain.

Helical Pier Systems for Stability

Helical piers (also called screw piles) are one of the most reliable pergola foundation options for sloped or disturbed soils. Driven into stable strata below the topsoil using a hydraulic drive head, they provide immediate bearing capacity without excavation or concrete cure time. On a hillside, each pier can be extended to a different depth, making it easy to create a perfectly level beam line across varying grades.

Because capacity correlates to installation torque, the installer can verify load-bearing performance as each pier is advanced. This makes helical pier mounting especially attractive in areas with expansive clays or frost, where deeper embedment minimizes movement. Compared to concrete pier installation, helical systems reduce site disruption, avoid pour delays, and perform better in freeze–thaw cycles when installed below the frost line.

A typical setup uses steel shafts with one or more helices and a top cap with a flat flange. Your pergola’s surface-mount post bases then bolt to the flange, accommodating both 4x4 and 6x6 configurations. Zen Pergolas kits are compatible with this approach, giving DIYers a clean, code-friendly anchor option—particularly helpful for larger spans or wind-prone sites such as Large freestanding pergola kits.

Basic steps for a sloped yard pergola setup include marking post locations, calling for utility locates, and driving each pier to the required torque at the target elevation. Caps are then leveled and bolted, and posts are plumbed to the bases. For stepped footing installation on steeper grades, set adjacent piers at different elevations and step the beam accordingly; for example, a 12'x16' pergola crossing an 18-inch drop might use two piers at grade and two piers 18 inches higher with a transitional beam step.

Key advantages and considerations:

• Speed: No digging or curing; build the same day.
• Performance: Verified capacity via torque; excellent in poor or wet soils.
• Minimal disturbance: Smaller footprint than augered holes—ideal uneven yard footing solutions.
• Cost and access: Higher per-pier cost; may require machinery access or a certified installer.
• Codes: Some jurisdictions require engineering or supplier documentation.

For most DIYers, hiring a helical installer for the anchors and then assembling the pergola is the best balance of speed and assurance. Zen Pergolas provides clear post layout guidance, surface-mount hardware, and kit options sized for 4x4 or 6x6 brackets, helping you pair the right anchor strategy with your chosen design among today’s top pergola foundation options.

Surface Mount Solutions for Uneven Ground

When full-depth excavation isn’t practical, surface-mount approaches can deliver stable, code-conscious pergola foundation options on sloped or irregular terrain. The core idea is to create level bearing points above grade, then anchor adjustable post bases or steel brackets to those points. This path works well for a sloped yard pergola setup where you’re trying to preserve landscaping or hardscape.

If you have an existing concrete patio or walk, verify it’s at least 4 inches thick, in good condition, and not just a thin topping over base material. Use surface-mount post bases anchored with either mechanical wedge/sleeve anchors or epoxy-set threaded rod, respecting minimum edge distances and embedment. In cracked or seismic-rated slabs, adhesive anchors often perform better; always follow the base manufacturer’s ICC-ES guidance.

On sloped ground, a stepped footing installation is often the cleanest approach. Form and pour small, individual concrete pads that are level to each post location but at different elevations to follow the grade. For example, on a 12x16 pergola over a 6-inch fall, pour the uphill pads flush with grade, then “step down” the downhill pads by 2–3 inches each; finalize fine-tuning with adjustable post bases and non-shrink grout rather than wood shims.

Concrete pier installation can also support surface mounting while minimizing disturbance. Pour isolated piers to just above grade with rebar and a smooth cap, then anchor steel bases to the cured concrete. In tight-access sites or expansive soils, helical pier mounting achieves similar results: a contractor installs screw piles to load-bearing depth, then bolts a cap plate that accepts a surface-mount bracket.

Common surface-mount options and when to use them:

• Wedge/sleeve anchors for sound, uncracked concrete with adequate thickness and edge clearance.
• Epoxy-set threaded rod for cracked concrete, short edge distances, or when precise layout holes are needed.
• Helical pier caps for poor soils, frost heave, or where excavation is restricted.
• Non-shrink grout or leveling compound to eliminate minor base plate gaps on slightly irregular pads.
• Avoid direct anchoring to pavers; remove units and pour hidden pads or core-drill to a footing below.

For decks, do not rely on deck boards alone. Through-bolt post bases to framing with solid blocking, load-path connectors, and tension ties to address uplift and lateral forces.

Zen Pergolas kits pair seamlessly with standard 4x4 or 6x6 surface-mount post bases, making uneven yard footing solutions straightforward. Use the Pergola Kit Finder Tool to match kit size and post count to your chosen anchors, whether on stepped pads, slabs, or helical caps. Their free-standing or wall-mounted designs give flexibility on tricky grades, and components ship free from Boise, ID. Always verify local code, frost depth, and wind exposure before finalizing your plan.

Deck Attachment Alternatives

If your deck can’t carry the additional load of a pergola—or you want to avoid penetrating waterproofing and rail locations—build the structure free-standing beside the deck and bridge the gap with a small landing or paver step. This keeps loads on the ground and opens up more pergola foundation options that work well in sloped or irregular grade conditions.

Concrete pier installation is the most common choice when placing posts adjacent to a deck. Pour 12–18 inch diameter piers to frost depth (or as required locally), align them with the deck edge, and use adjustable post bases to fine-tune plumb. For a sloped yard pergola setup, use stepped footing installation: set pier tops at different elevations and cut posts to height, or tie them with a short grade beam to keep the beam line level across the slope.

Helical pier mounting is a clean, fast alternative with minimal excavation—ideal close to existing deck footings or foundations. Installers drive the steel shafts to a torque that correlates with capacity, then attach post brackets above grade. This is one of the best uneven yard footing solutions because you can vary pile lengths to match changing grades while keeping the pergola beam level.

Where you have a concrete patio or can pour small pads, surface-mount post bases avoid digging near deck utilities or footings. Verify the slab is at least 4 inches thick, reinforced, and uncracked; then set stainless or galvanized bases with mechanical anchors or epoxy. On pavers, first add a hidden concrete pier or thickened pad under the post location to transfer loads through the pavers.

To span across multiple stepped piers on a hillside, consider a reinforced grade beam parallel to the deck. A typical detail uses three piers, #4 rebar, and a 12x18 inch beam to create a continuous, level seat for post bases, reducing differential settlement. In tighter yards, a short retaining wall and compacted terrace can create a level pad for one side of the pergola.

When choosing between these pergola foundation options:

• Confirm frost depth, soil type, and setbacks before digging.
• Maintain separation from existing deck footings to prevent load interaction.
• Plan lateral resistance (knee braces, privacy walls, or moment frames) in wind zones.
• Size posts and brackets (4x4 vs 6x6) to match spans and local loads.
• Get inspector approval on piles, anchors, and beam connections.

Zen Pergolas’ free-standing kits pair easily with concrete piers, helical piles, or surface mounts, with bracket options for 4x4 or 6x6 posts and add-on privacy walls to boost stiffness. Use the Pergola Kit Finder to match spans up to 36'x12' or 24'x24' with your chosen footing method, then ship free from Boise, ID to start building beside your deck without touching it.

Stepped Footing Configurations

Stepped footings create a series of level bearing points at different elevations so your posts land on flat, secure surfaces while the terrain follows its natural grade. This is one of the most versatile pergola foundation options for moderate slopes where full grading or a continuous retaining wall isn’t practical. It also keeps excavation minimal, protects topsoil, and yields a clean sloped yard pergola setup with a level beam line.

Plan the stepped footing installation around consistent increments—commonly 4, 6, or 8 inches—so the tops of pads or piers align to your string line. Use a laser level to mark each step, and design so the bottom of each footing meets or exceeds local frost depth. Keeping post heights consistent simplifies cuts and improves load sharing, especially for larger spans or when adding privacy walls or a louvered roof.

For concrete pier installation, step the pier tops across the slope rather than cutting the hillside flat. Example: A 12x20 pergola across an 18-inch fall can use three 6-inch steps; each corner sits on a 12-inch-diameter pier, 36 inches deep (or below frost), with #4 rebar cages. Wet-set or anchor-bolt post bases bring all post tops to the same elevation, so beams install dead level.

Build quality and durability improve with a few key details:

• Tie adjacent steps with rebar dowels to resist creep, and add shear keys or surface roughening where pads meet soil.
• Provide drainage: compacted gravel sub-bases, perimeter swales, or a short French drain on the uphill side.
• Maintain at least 3 inches of concrete cover over rebar and keep anchors the manufacturer-recommended distance from edges.
• Verify bearing capacity after excavation; over-excavate soft spots and backfill with compacted road base.

If digging is limited or access is tight, helical pier mounting adapts well to stepping. Install each screw pile to torque, cut to height, and use adjustable post bases to fine-tune elevations—an efficient uneven yard footing solution with minimal concrete. For lighter structures on gentle slopes, terraced paver pads can work, but they demand excellent compaction and aren’t ideal for frost or expansive soils.

Zen Pergolas kits pair neatly with stepped pads, concrete piers, or helical piers using robust 4x4 or 6x6 post brackets. Their Pergola Kit Finder helps you match post spacing to your footing plan, making layout on a slope straightforward. With clear instructions and hardware that mount cleanly to stepped surfaces, you can achieve a professional result without heavy equipment.

Ground-Level Adjustment Techniques

Before you pick among pergola foundation options, map the slope and decide where minor grading can create level, load-bearing spots. Stretch a taut mason’s line across planned post centers, use a laser level or water level to measure elevation changes, and mark cut/fill targets with a story pole. Often, a few localized adjustments are faster and cleaner than reshaping the entire yard for a sloped yard pergola setup.

Compacted gravel pads are fast, durable uneven yard footing solutions for precast pier blocks or surface-mount post bases. Excavate organic soil to undisturbed subgrade, lay geotextile to prevent fines migration, then compact 4–6 inches of 3/4-inch crushed stone in 2-inch lifts. A hand tamper works on small pads; a plate compactor is better. Check level in both directions before placing blocks or bases.

For stepped footing installation, carve short terraces into the slope so each post bears on its own “step.” Edge each step with a small retaining curb, pavers set in mortar, or landscape block to resist creep, then place pier blocks or pour concrete on the flat. Tie steps into the slope with landscape staples and fabric, and backfill/compact in thin lifts to reduce settlement.

On steeper grades or where codes require frost protection, concrete pier installation can still be tidy. Dig to frost depth, square and plumb sonotubes, and cut tops to different heights to match your level line. Add rebar, pour, and embed adjustable post bases or epoxy anchors later; this keeps all brackets at one finished elevation even though the ground varies.

Helical pier mounting shines when you want minimal excavation and strong bearing in poor soils. A pro installs steel piers to torque (a proxy for capacity), then you fine-tune elevations with adjustable caps before bolting on post bases. It’s precise, fast, and minimizes disturbance on sensitive slopes.

Hardware and shimming can make micro-adjustments without heavy digging:

• Adjustable post bases offer 1–3 inches of vertical travel for final leveling.
• Non-shrink grout beds under base plates fill minor dips on concrete pads.
• Composite shims and stainless washers can tune millimeter differences under brackets.

Mind drainage so your adjustments last. Slope finished gravel pads 1–2% away from posts, add a shallow swale or French drain upslope of stepped pads, and armor exposed soil with rock or erosion fabric. Zen Pergolas kits include robust 4x4 or 6x6 brackets that mount cleanly to pier blocks, concrete pads, or helical caps; use their Pergola Kit Finder Tool to match your chosen footing and hardware to the right kit for your site.

Professional Installation Considerations

Choosing the right pergola foundation options on a slope often benefits from professional support, especially when long-term stability, code compliance, and drainage are priorities. A contractor or engineer can evaluate soil conditions, slope gradient, and load paths to recommend uneven yard footing solutions that won’t shift or heave over time. This is particularly important if your design includes a roof, privacy screens, or larger spans that increase dead load and wind uplift.

Start with a thorough site assessment. Confirm utility locations (dial 811 in the U.S.), measure slope with a laser level or transit, and identify soil type and frost depth. Poorly draining or expansive soils, high water tables, and freeze-thaw cycles all influence whether you choose concrete pier installation, helical pier mounting, or a stepped footing installation. A pro can also propose runoff management—like a French drain upslope—to prevent washouts around footings.

Concrete piers remain versatile for a sloped yard pergola setup, but execution matters. Pros will step pier heights using batter boards and a fixed datum line so beam elevations match, brace sonotubes against hillside pressure, and tie #4 rebar cages to minimize cracking. In frost zones, they’ll extend below frost depth, bell the bottoms where appropriate for uplift resistance, and align embedded brackets or anchor bolts precisely to your post layout.

Helical piers are compelling on steep or access-limited sites because they minimize excavation and are immediately load-capable. Certified installers monitor torque to verify bearing capacity, can angle piles slightly if needed for lateral resistance, and add hot-dip galvanized caps that accept post bases. This method is clean, fast, and repeatable, but it does require specialized equipment and documentation for permits.

Terracing, small retaining features, or grade beams may be recommended when slopes exceed practical footing step heights. Where winds, seismic forces, or snow loads are significant, an engineer can specify post spacing, connector hardware, and embedment to ensure the structure meets local code.

To streamline coordination, ensure your pergola kit and brackets match the footing plan. Zen Pergolas offers 4x4 and 6x6 bracket sizes compatible with both concrete and helical pier caps, plus configurations up to 36'x12' or 24'x24' that often trigger permitting and inspection. Their Pergola Kit Finder Tool helps you lock in dimensions and mounting style so your installer can position footings accurately the first time.

Consider hiring a pro when:

• The slope exceeds 15–20% or varies sharply across the footprint.
• You have expansive clay, high water table, or poor drainage soils.
• You’re in high-wind, seismic, or heavy snow regions.
• The design includes a solid roof, privacy walls, or larger spans.
• Access or safety concerns make excavation or shoring difficult.

Pairing a licensed installer with a well-specified kit from Zen Pergolas reduces guesswork and speeds up the build. Ask for written load specs, footing details, inspection schedules, and warranties, and share your final kit drawings so foundations, brackets, and beams align perfectly on day one.
