How to Build a Corner Pergola (DIY Guide)

Learning how to build a corner pergola starts with choosing the right layout and a construction method that matches your experience. The simplest approach for many homeowners is to use a steel bracket system with locally sourced dimensional lumber rather than cutting traditional mortise-and-tenon joints or designing every connection from scratch.

This guide explains how to plan, measure, anchor, frame, and finish a corner pergola. It also covers the differences between triangle and L-shaped layouts, the tools and materials you will need, realistic installation difficulty, and the mistakes most likely to create problems.

Choose the Right Corner Pergola Layout

A corner pergola is not limited to one standard shape. It can be a compact triangular structure that follows an angled section of a patio, or a larger L-shaped structure that extends in two directions. Choosing between those layouts is the first major decision because it affects the post locations, beam arrangement, lumber quantities, roof design, and overall installation process.

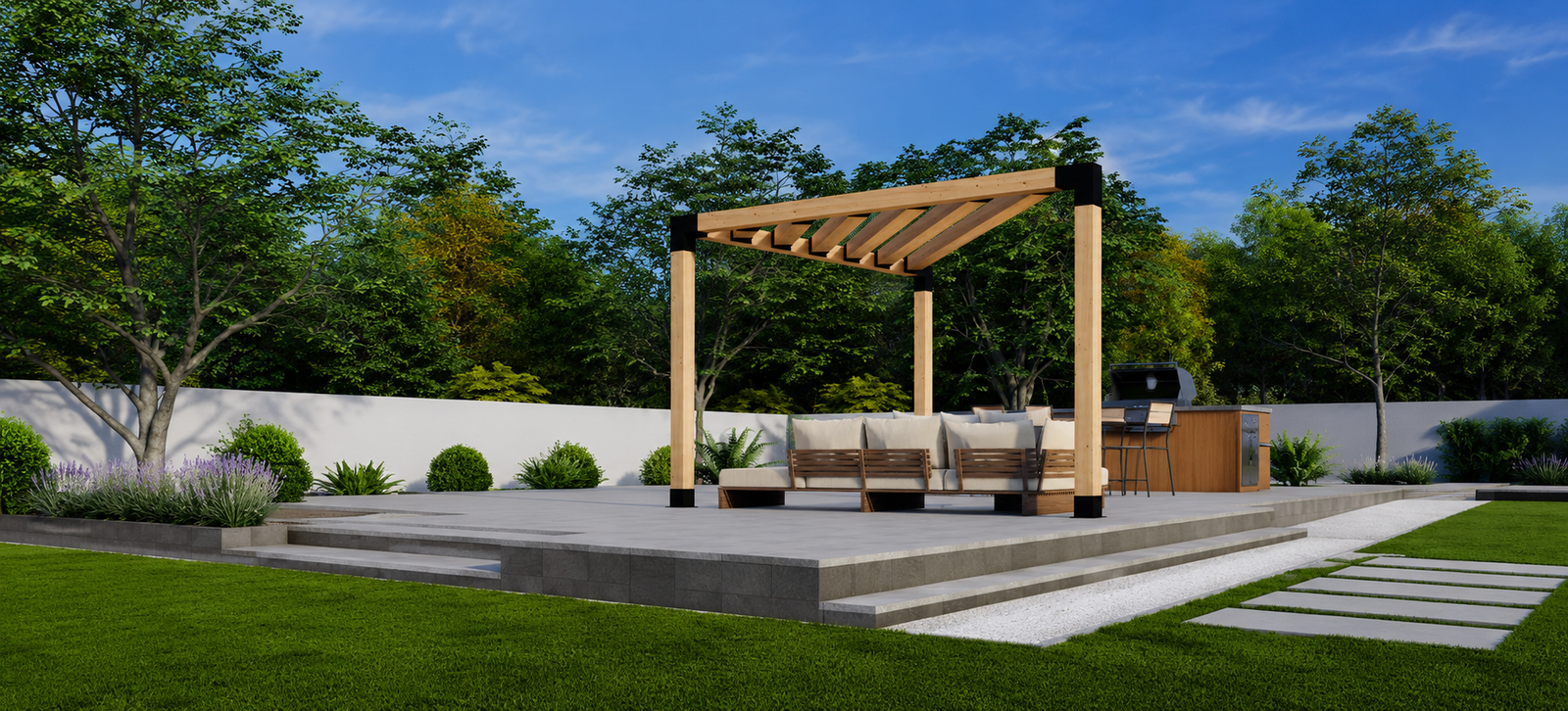

Triangle pergola layout

A triangle pergola typically uses three primary corners instead of the four corners found in a rectangular pergola. It works especially well where two property lines, patio edges, walls, or landscape features meet at an angle.

A triangular design can be useful for:

• Small patio corners
• Angled decks or paved areas
• Conversation seating
• Fire pit or garden corners
• Spaces where a rectangular pergola would feel oversized

The main challenge is establishing the diagonal side accurately. Even when brackets simplify the structural connections, the layout must still be measured carefully so the posts, beams, and roof members align correctly. Depending on the exact design and bracket configuration, some angled lumber cuts may still be required.

Homeowners planning this type of project can explore purpose-built triangle pergola bracket kits rather than trying to adapt a standard rectangular kit to an angled footprint.

L-shaped pergola layout

An L-shaped pergola is essentially two connected pergola sections arranged at a right angle. This configuration can follow the corner of a house, wrap around a patio, or create two related outdoor zones without covering the entire area with one oversized rectangle.

An L-shaped design is often a better fit when you want to create:

• A dining area connected to a lounge area
• A grill station beside a shaded seating area
• A pergola that follows two sides of a house
• Separate shade zones with one coordinated structure
• A layout that wraps around a pool, patio, or garden feature

An L-shaped pergola requires more posts, beams, brackets, and lumber than a simple triangle in most applications. However, its right-angle geometry is often easier to measure than a custom triangular layout. You can review L-shaped pergola kits designed specifically for connected multi-section configurations.

Layout	Best For	Planning Difficulty	Typical Use
Triangle	Compact or angled corners	Requires careful diagonal measurements	Seating, garden, or fire pit zone
L Shape	Larger patios and connected spaces	More components, but mostly right-angle layout work	Dining plus lounging or cooking

Materials and Tools You Will Need

A pergola bracket kit simplifies the connection system, but it is not a complete structure. Before starting, review the kit instructions and create a complete shopping list for your specific dimensions and mounting surface.

Materials supplied with a bracket kit

A Zen Pergolas bracket kit generally includes:

• Powder-coated steel structural brackets
• Fasteners or screws for securing lumber to the brackets
• Any selected specialty brackets included with the chosen configuration

Materials you purchase locally

You will still need to source:

• Dimensional lumber in the sizes required by your bracket kit
• Anchors suitable for the patio, deck, footing, or other mounting surface
• Concrete and footing materials when installing posts in new footings
• Wood stain, sealer, or exterior finish if desired
• Optional roof materials, slats, canopy, or privacy-wall lumber

Available brackets are designed around common lumber sizes, including 4x4, 6x6, 2x4, and 2x6 components. Do not assume that every bracket works with every board size. Confirm the required lumber dimensions before purchasing wood.

Basic tools

• Tape measure
• Carpenter’s pencil or marking tool
• Drill or impact driver
• Appropriate drill bits and driver bits
• Level
• Framing square
• String line and stakes
• Circular saw or miter saw
• Ladder
• Clamps
• Socket set or wrenches, if required by the anchors
• Personal protective equipment

A laser level can make layout work easier, but it is not essential. For a triangle pergola, an adjustable angle finder may also help transfer the planned angle to the lumber or mounting surface.

Plan and Measure the Pergola

Good corner pergola plans begin with the space, not the lumber. Before ordering brackets or buying boards, map the complete footprint and make sure the finished structure will not interfere with doors, windows, rooflines, utilities, drainage, walkways, or property setbacks.

1. Define the usable area

Measure the patio, deck, or yard area where the pergola will be installed. Record permanent obstacles and decide how much circulation space should remain around furniture, grills, planters, or pool edges.

For an L-shaped pergola, measure each leg separately. For example, one section might cover an outdoor dining table while the second extends over a lounge area. Do not treat the entire design as one large rectangle unless that is truly how it will be framed.

2. Mark the post locations

Use chalk, painter’s tape, stakes, or temporary markers to show the proposed post centers. Walk through the area before drilling or digging anything. Confirm that the posts will not block important sightlines or create narrow passages.

For a triangle layout, establish all three points and measure every side. For an L-shaped layout, mark the outside corners, inside corner, and any intermediate post locations required by the design.

3. Verify the geometry

For square and rectangular sections, compare diagonal measurements. When both diagonals match, the layout is square. An L-shaped layout should be checked section by section rather than relying on one overall diagonal.

A triangle requires a different approach. Confirm all three side lengths and compare them with the plan. Small errors at the ground can become much more noticeable once long beams and roof members are installed.

4. Confirm height and clearance

Determine the desired finished height while accounting for:

• Bracket dimensions
• Beam depth
• Roof slats, rafters, or canopy hardware
• Nearby doors and windows
• Roof overhangs and gutters
• Ceiling fans or hanging accessories, when planned

Check the kit instructions before cutting posts. The post length and the final pergola height may not be identical because beams and brackets add to the overall assembly.

Prepare the Lumber and Site

Inspect and organize the lumber

Choose straight boards with minimal twisting, bowing, or major defects around connection points. Lay the lumber on a flat surface and assign each board to a specific post, beam, or roof position before cutting.

Labeling the boards can prevent confusion during assembly, especially when the two legs of an L-shaped pergola use different lengths.

Cut the boards to length

One of the main advantages of a bracket system is that it can eliminate complicated traditional joinery. You generally cut the lumber to length and secure it inside or against the appropriate steel bracket instead of forming interlocking wood joints.

That does not mean the project requires no cutting. Lumber is not included or pre-cut, so each piece must be measured and cut for the selected dimensions. A custom triangle may also require angled cuts, depending on its geometry and the brackets being used.

Measure each piece twice and confirm its labeled location before cutting. Do not assume that visually similar beams are interchangeable.

Apply the finish at the right time

If you plan to stain or seal the pergola, consider applying the first coat before assembly. Pre-finishing makes it easier to cover the ends and sides that will become difficult to reach after the boards are installed.

Allow the wood to dry fully before placing it into the brackets. Follow the finish manufacturer’s recommendations for the lumber type and moisture condition.

Prepare the mounting surface

The correct anchoring method depends on whether the pergola will be installed on:

• A concrete patio
• Concrete footings
• A structurally suitable deck
• Pavers over properly designed foundations
• Another approved structural surface

Do not attach a pergola only to decorative pavers, thin surface material, or deck boards without confirming that the underlying structure can support the loads. Stability depends on the anchoring method, lumber quality, site conditions, and correct installation.

How to Build a Corner Pergola Step by Step

The precise sequence may vary by kit and layout, so the instructions supplied with the selected brackets should control the installation. The following process provides a practical overview of how most bracket-based corner pergolas are assembled.

Step 1: Lay out the brackets and hardware

Separate the brackets by function and compare them with the installation diagrams. Identify post bases, beam connectors, corner brackets, roof brackets, angled supports, and any specialty components.

Keep the required screws with the matching brackets. Using the wrong fastener in the wrong connection can slow the installation and may affect how the assembly fits.

Step 2: Install or position the post bases

Place each post base at its marked location. Before anchoring, recheck all measurements and confirm that the bases are aligned correctly.

For an L shape, verify each rectangular section and the shared inside corner. For a triangle, confirm all three side lengths and the angle between the connecting sides.

Anchor the bases using hardware selected for the actual mounting surface. The lumber-to-bracket screws supplied with the kit are not necessarily the same as the anchors needed to attach the structure to concrete, footings, or a deck.

Step 3: Set the posts

Place the posts into their bases and secure them according to the instructions. Use temporary bracing so the posts remain stable while the beams are installed.

Check each post with a level on two adjacent faces. A post can appear vertical from one direction while leaning in another. Do not continue until each post is plumb.

Step 4: Assemble and install the primary beams

Depending on the kit and available help, you may assemble some brackets and beams at ground level before lifting them into place. Larger beams are usually easier to control with two or more people.

Install the primary perimeter beams first. These establish the shape of the pergola and connect the posts into a stable frame.

For a triangle pergola, pay particular attention to the diagonal beam and its connection at each end. For an L shape, work methodically through one leg and then the second while continuously checking the shared intersection.

Step 5: Recheck the frame

Before fully tightening every connection, verify:

• Post spacing
• Beam level
• Post plumb
• Square corners where applicable
• Triangle side lengths and angles
• Alignment between the two sections of an L-shaped frame

Correcting a minor alignment issue is much easier before the roof members are installed.

Step 6: Add roof beams, rafters, or slats

Install the roof components according to the selected design. Customers can control the number, spacing, and angle of slats or rafters, provided the design remains compatible with the bracket system and structural plan.

Use a spacer block when installing repeated slats. This produces more consistent spacing than measuring every opening independently.

If you prefer adjustable fabric shade instead of a full slatted roof, consider a pergola with a canopy. Account for the canopy dimensions and mounting brackets during the initial planning stage rather than adding them as an afterthought.

Step 7: Install corner supports or optional walls

Angled corner supports can add bracing and create a more finished appearance. Install them only in the positions and manner intended for the selected bracket system.

You can also add a slatted privacy wall to one side of the pergola. This can be useful where the structure faces a neighboring property, street, or exposed section of the yard. Plan the wall before finalizing the post layout because it adds lumber, brackets, weight, and wind exposure. Review compatible pergola privacy-wall kits when planning that feature.

Step 8: Tighten, inspect, and finish

After the full structure is aligned, tighten the required hardware and inspect every bracket connection. Look for missed screws, improperly seated lumber, loose anchors, and boards that shifted during assembly.

Remove temporary bracing only after the frame is stable. Touch up the wood finish where necessary and clean any construction debris from the installation area.

How Difficult Is a DIY Corner Pergola?

A bracket-based corner pergola generally falls within the beginner-to-intermediate DIY range, but the difficulty depends on the size, shape, mounting surface, and roof design.

The bracket system simplifies the connections by replacing complex wood joinery with steel hardware. However, the project still requires accurate measuring, lumber cutting, anchoring, lifting, leveling, and safe ladder work. It should not be treated as a plug-and-play structure.

Project Element	Relative Difficulty	Why It Matters
Measuring the footprint	Moderate	Errors affect every later connection
Cutting straight lumber	Beginner to moderate	Boards must match the planned dimensions
Triangle angle layout	Moderate	Three side lengths and angled connections must align
Post anchoring	Moderate to advanced	The correct method depends on the mounting surface
Lifting beams	Physically demanding	Long lumber is difficult to position alone
Installing roof slats	Beginner to moderate	Consistent spacing requires careful repetition

How long does installation take?

The bracket assembly portion may take approximately one to two hours for a small pergola or three to four hours for a larger pergola. Those estimates do not necessarily include planning, permit review, footing work, concrete curing, lumber shopping, cutting, staining, or site preparation.

A custom triangle or large L-shaped pergola may require additional time because of the layout complexity and number of components. Give yourself enough time to stop and correct alignment issues rather than rushing to complete the project in one session.

When should you hire help?

Consider using a contractor or experienced installer when:

• The pergola requires new engineered footings
• The mounting surface is structurally uncertain
• The design attaches to a house
• The beams are too long or heavy to lift safely
• The site has unusual wind, snow, or soil conditions
• You are uncertain about permits or local structural requirements

Common Corner Pergola Mistakes to Avoid

Buying lumber before choosing the bracket kit

The brackets determine the required lumber dimensions and connection style. Select the kit and review its instructions before purchasing wood.

Assuming the kit includes lumber

A pergola bracket kit is a hardware system, not a complete lumber package. Budget for the steel brackets, local lumber, anchors, optional add-ons, tools, finish, and any footing materials.

Failing to verify the mounting surface

A pergola is only as stable as its foundation and anchoring. Decorative patio surfaces and deck boards alone may not provide adequate structural support.

Cutting every board at once

Even a carefully prepared plan may need minor field adjustments. Cut and verify the main structural pieces before processing every roof slat or secondary component.

Ignoring the inside corner of an L shape

The inside intersection is the defining part of an L-shaped pergola. Misalignment there can make both pergola sections appear crooked. Check the shared corner repeatedly during framing.

Treating a triangle like half of a rectangle

A triangular pergola has its own geometry. The diagonal beam, post orientation, roof-member lengths, and bracket arrangement should be planned as a complete triangular system rather than improvised from leftover rectangular components.

Installing posts without temporary bracing

Posts can move while beams are lifted into place. Temporary braces help maintain the intended position and reduce the chance of loosening anchors or assembling the frame out of alignment.

Planning add-ons after construction

Canopies, privacy walls, roof slats, hammocks, and accessory mounts can affect the layout and required brackets. Decide which features you want before finalizing the frame.

Customize the Pergola for Your Space

One reason to build with brackets and locally sourced lumber is the amount of control you retain over the final structure. Rather than adapting your patio to a fixed prefabricated footprint, you can plan the pergola around the actual dimensions and intended use of the corner.

You can choose:

• The overall width, depth, and height
• A triangle, L shape, or other corner configuration
• 4x4 or 6x6 structural lumber where compatible with the selected brackets
• Cedar, redwood, pressure-treated lumber, or another appropriate wood
• The stain or exterior finish
• An open frame, slatted roof, canopy, or compatible solid roof system
• The number and spacing of roof slats
• Optional privacy walls, corner supports, or accessories

Customization works best when the decisions are made as one coordinated plan. For example, closely spaced roof slats change the visual weight and material requirements. A privacy wall changes wind exposure. A canopy requires compatible dimensions and mounting points. Each addition should be included in the material list and layout from the beginning.

For projects that do not fit a standard square or rectangular footprint, start with the complete selection of corner pergola kits and identify the configuration closest to your intended layout.

Final Thoughts

The easiest way to build a corner pergola is to begin with a clear layout, use a bracket system designed for that shape, and complete the installation in a careful sequence. Brackets remove much of the complexity associated with traditional wood joinery, but accurate measuring, proper anchoring, straight lumber, and patient alignment are still essential.

Choose a triangle pergola for a compact or angled corner. Choose an L-shaped pergola when you want two connected outdoor zones. Once the footprint is established, you can select the lumber, roof style, finish, and optional features that best suit the patio and the way you plan to use it.
