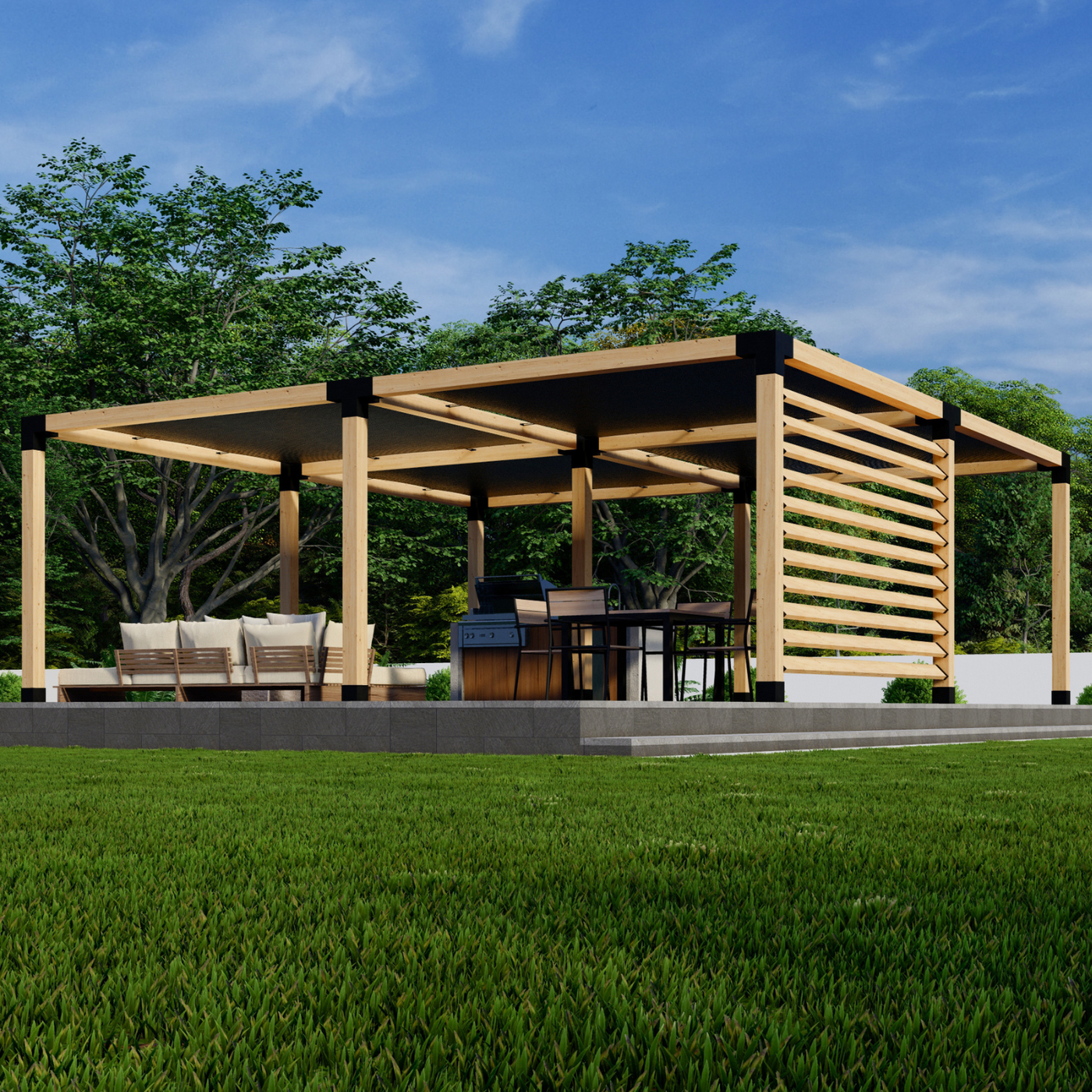

Bracket Kit for a Wooden Pergola With Sunshade Roof & Walls
⬩ Freestanding 4-Block pergola with a 6x6 Frame
⬩ Slatted Roof (2x6s Atop Beams) + 2 Privacy Walls
About this Pergola Kit Configuration:
- Type: Free-standing (see the attached version of this kit)
- Bracket size: 6x6 (see the smaller 4x4 version of this kit)
- Roof style: Traditional w/ rafters atop beams (see this same kit with an inline, square posts or angled slats roof)
- Privacy wall(s): 2 (see this same kit with 0 or 1 privacy wall)
- Roof/wall slat spacing: Medium (see this same kit with far or close spacing)
Want something completely different? Use our easy design tool to create your own pergola configuration.
Included in this Bracket/Hardware Kit for a Wood Pergola:
-
9x base brackets (for 6x6 wood) - 4x 3-arm post brackets (for 6x6 wood)
- 4x 4-arm post brackets (for 6x6 wood)
- 1x 5-arm post bracket (for 6x6 wood)
- 42x 2x6 rafter brackets for 14 traditional roof rafters (2x6) running the full up-to-24' length/width
- 32x 2x6 insert brackets for 16 wall slats (2x6 wood)
- Stainless steel screws (1.5-inch #10 self-tapping wood screws with pan/round head painted black) for securing wood into brackets
- NOTE: Wood (lumber) and anchoring hardware for securing the base brackets to a solid foundation are NOT included and will need to be purchased locally
This bracket kit will accommodate any freestanding wood pergola ranging from 13-24 feet by 13-24 feet. The pergola does not need to be the exact dimensions shown in the images on this page.
The DIY-friendly kit includes 42 2x6 rafter brackets, allowing you to add 14 traditional roof rafters running the pergola's full up-to-24-foot width (or up-to-24-foot depth). You can purchase additional 2x6 rafter brackets here to add more rafters. The kit also includes 32 2x6 insert brackets so you can add two privacy walls with 8 slats each (both 8' height with medium spacing). If desired, you could reduce the number of slats on the privacy wall(s) and use some of the insert brackets to add a side railing or another full/partial privacy wall. You can also purchase additional 2x6 insert brackets here.
Want a Smaller 4x4 Frame Instead?
Click here to see this same kit for an outdoor wood pergola but for smaller 4x4 wood posts and 2x4 roof rafters and wall slats (instead of 6x6 wood posts and 2x6 roof rafters and wall slats).
About Our Steel 6x6 Pergola Brackets:
- Made with premium quality steel
- Made of 12-gauge steel (~2.6mm thick)
- Laser-cut, bent and welded
- Advanced weather coating technology to withstand extreme weather conditions
- Pre-drilled holes for securing wood and accessories to brackets
- Made for dressed lumber commonly called 6x6s (actual dimensions are 5.5" x 5.5")
- Includes stainless steel screws (1.5-inch #10 self-tapping wood screws with pan/round head painted black) for securing wood into brackets
- Reduces your pergola build time by as much as 75%
- Backed by our 5-year warranty
- Shipped directly to your doorstep from Boise, Idaho
