Hardware Kit for a Large Wooden Pergola

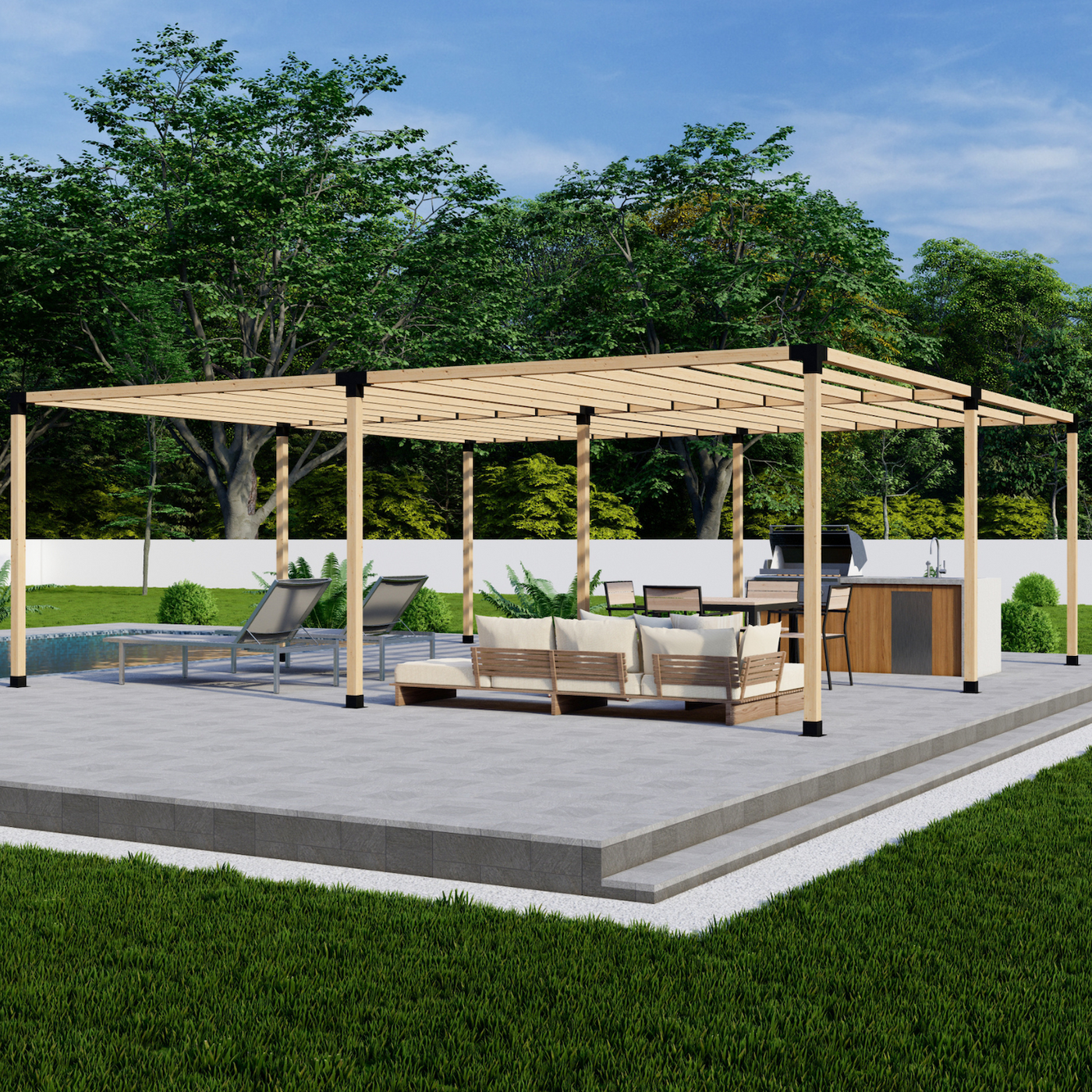

⬩ Freestanding 4-Block pergola with a 4x4 Frame
⬩ Slatted Roof (Straight Inline 2x4s)
About this Pergola Kit Configuration:
- Type: Free-standing (see the attached version of this kit)
- Bracket size: 4x4 (see the larger 6x6 version of this kit)
- Roof style: Straight inline rafters (see this same kit with a traditional, square posts or angled slats roof)
- Privacy wall(s): None (see this same kit with 1 or 2 privacy walls)
- Rafter spacing: Medium (see this same kit with far or close rafter spacing)
Want something completely different? Use our easy design tool to create your own pergola configuration.
Included in this Hardware Kit for a Wood Pergola:
-
9x base brackets (for 4x4 wood) - 4x 3-arm post brackets (for 4x4 wood)
- 4x 4-arm post brackets (for 4x4 wood)
- 1x 5-arm post bracket (for 4x4 wood)
- 56x 2x4 insert brackets for 28 roof/wall slats (2x4 wood)
- Stainless steel screws (1.5-inch #10 self-tapping wood screws with pan/round head painted black) for securing wood into brackets
- NOTE: Wood (lumber) and anchoring hardware for securing the base brackets to a solid foundation are NOT included and will need to be purchased locally
This pergola brackets kit will accommodate any wood pergola ranging from 13-24 feet by 13-24 feet. The pergola does not need to be the exact dimensions shown in the images on this page.
The kit includes 56 2x4 insert brackets. While the intent is that all 56 of these brackets will be used to add 7 roof rafters to each of the 4 roof sections (12' span each with medium spacing), you can use the brackets any way you'd like (i.e. adding a privacy wall or half/partial wall, adding a side railing, increasing the number of slats in a roof/wall section, etc.). You can also purchase additional 2x4 insert brackets here.
Want a Larger 6x6 Frame?
Click here to see this same wood pergola bracket kit but for larger 6x6 wood posts and 2x6 roof rafters (instead of 4x4 wood posts and 2x4 roof rafters).
About Our Steel 4x4 Pergola Brackets:
- Made with premium quality steel
- Made of 14-gauge steel (~2.0mm thick)
- Laser-cut, bent and welded
- Advanced weather coating technology to withstand extreme weather conditions
- Pre-drilled holes for securing wood and accessories to brackets
- Made for dressed lumber commonly called 4x4s (actual dimensions are 3.5" x 3.5")
- Includes stainless steel screws (1.5-inch #10 self-tapping wood screws with pan/round head painted black) for securing wood into brackets
- Reduces your pergola build time by as much as 75%
- Backed by our 5-year warranty
- Shipped directly to your doorstep from Boise, Idaho
