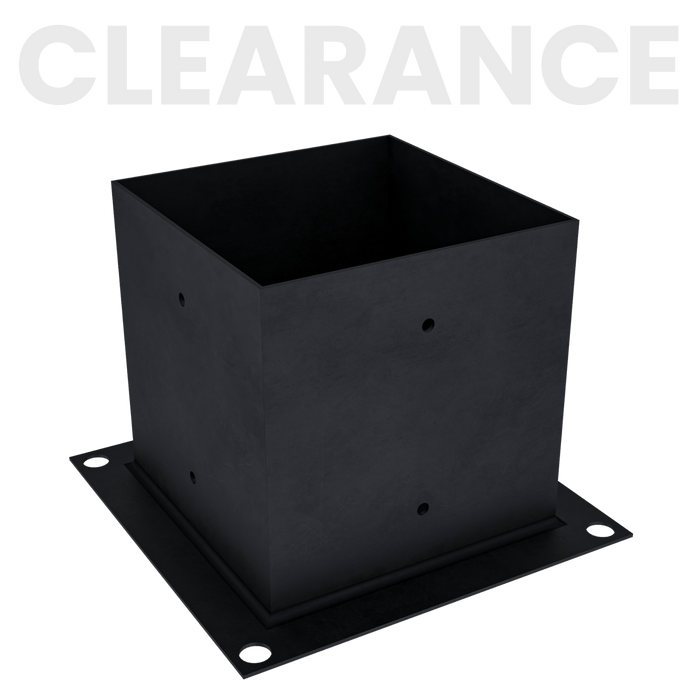

CLEARANCE - Pergola Post Base Bracket (for 6x6 Wood Posts)
Free Shipping - delivered by
-
Coupons - 1 available Reveal
Customize Your Pergola...
Pergola post base brackets are used to secure vertical posts to the ground or other solid foundation (i.e. cement slab, concrete footing, deck, landscape topper, etc.). Regardless of whether you're building a free-standing pergola or an attached pergola, you'll need several base brackets.
Dimensions & Specifications
- Channel (arm) width: 5.8 inches (148 mm)
- Channel (arm) depth: 5.8 inches (148 mm)
- Channel (arm) height: 5.8 inches (148 mm)
- Flange (lip) width: 1 inch (25mm) all the way around
- Number of arms: 1
- Inner dimensions of arm: 5.6 x 5.6 inches (143 x 143 mm) - made for 6x6 wood posts (which measure 5.5 x 5.5 inches)
- Holes on arm: 4 (2 holes on 2 sides - additional holes can be drilled) - 0.25-inch holes ideal for #10 size screws (included)
- Holes on bottom plate: 4 (1 hole in each corner) - 0.5-inch holes for larger anchoring hardware (not included)
- Weight: 4.5 pounds
- Not included: wood post, anchoring hardware for securing bracket to ground/base
Buy the BRAND NEW version of this bracket here: https://zenpergolas.com/products/6x6-base-bracket
