Specifications

• amazon bullet 1: Pergola kit includes: 2 base brackets, 2 wall-mount brackets, 2 3-arm post brackets and 6 insert brackets (all for 6x6" wood posts) + stainless steel screws
• amazon bullet 2: Attached pergola can be any size up to 12 feet wide (attached to the house), up to 12 feet deep (out from the house) and up to 10 feet tall
• amazon bullet 3: About our steel brackets: 1) 12-gauge steel (approximately 2.6mm thick) - 2) Laser-cut, bent and welded - 3) Advanced weather coating technology to withstand extreme weather conditions - 4) Pre-drilled holes for securing wood and accessories to brackets - 5) Backed by a 5-year warranty
• amazon bullet 4: The 6 insert brackets allow you to add 3 square 6x6 roof rafters to your pergola
• amazon bullet 5: Wood (lumber) and specialty hardware for anchoring base brackets and wall-mount brackets not included
• Assembled Height Ft: 8
• Assembled Length Ft: 12
• Assembled Width Ft: 12
• coverage area sqft: 144
• Required Lumber: As noted above, wood (lumber) is NOT included in this pergola bracket kit (nor is the hardware you'll need to anchor the base and wall-mount brackets).Before you can build your pergola, you'll need to purchase the following items from a local building supply store or lumber yard:- Two (2) 8' long 6x6 posts- Six (6) 12' long 6x6 posts- Anchoring hardware (16 pieces)The estimated cost* for the above lumber and anchoring hardware is $564. Together with the cost of this Zen Pergolas bracket kit, your estimated total all-in cost for your pergola is $1183.*Estimate only - Actual cost will vary depending on the type of wood you buy, your location, local stores & availability and various other factors.
• Text Over Image - Dark: lumber not included
• Preconfigured Slat Spacing: between the roof slats / rafters (see kit w/ medium or close spacing) between roof slats (see med or close spacing)

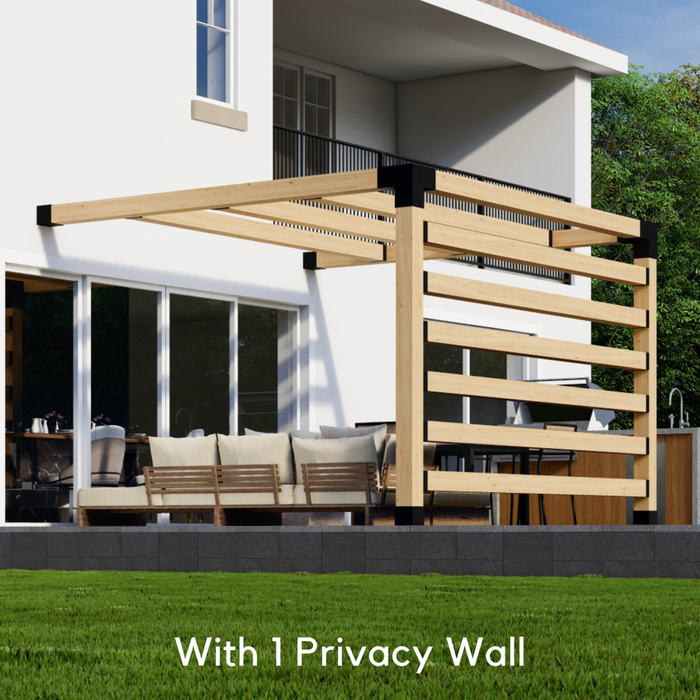

• Preconfigured Privacy Walls: see this same kit with a privacy wall see kit with a privacy wall
• Preconfigured Roof: change roof to: canopy , straight 2x6s , 2x6s atop beams or angled 2x6s
• Roof Brackets Type: INSERT BRACKETS for 6x6 wood
• Max Roof Brackets Count: 6
• More Info About Kit: This kit for an attached pergola will accommodate any attached pergola ranging from 4-12 feet wide by 4-12 feet deep . The house-attached pergola does not need to be exactly 12' x 12' like in the images on this page. The kit includes 6 6x6 insert brackets . While the images on this page show that all 6 brackets are used to add 3 square inline 6x6 roof rafters to your pergola (covering a span of 12' with far spacing between rafters), you can use the brackets any way you'd like (i.e. adding a privacy wall or half/partial wall, adding a side railing, etc.). You can also purchase additional 6x6 insert brackets here .
• Preconfigured Spacing Level: FAR SPACING
• Preconfigured Wall Count: 0 PRIVACY WALLS
• Preconfigured Roof Type: INLINE 6x6 POSTS
• Required Lumber and Cost: As noted above, wood (lumber) is NOT included in this wall-attached pergola kit, nor is the hardware you'll need to anchor the base brackets and wall mount brackets. Before you can build your pergola attached to the outside wall of the home, you'll need to purchase the following items from a local building supply store or lumber yard (assuming you plan to build a 12' x 12' pergola that is 8' tall): Two (2) 8' long 6x6 posts Six (6) 12' long 6x6 posts Anchoring hardware (16 pieces) The estimated cost for the above lumber and anchoring hardware is $564 . This is only an estimate; actual costs will vary depending on the type of wood you decide to buy, your location, local stores & availability, and various other factors.
• Preconfigured Bracket Size: 6x6 BRACKETS
• Pre Key Info Blocks: 1-Block
• Pre Key Info Brackets: 6x6 Frame
• Pre Key Info Roof: Slatted Roof (Inline 6x6 Posts)
• Pre Key Info Type: Wall-Mounted
