Pergola Wall-Mount Kit - For Attached Pergola
⬩ Wall-Mounted 1-Block pergola with a 4x4 Frame
⬩ Slatted Roof (Inline 4x4 Posts)
About this Pergola Kit Configuration:
- Type: Attached to house (see the free-standing version of this kit)
- Bracket size: 4x4 (see the larger 6x6 version of this kit)
- Roof style: Square posts (see this same kit with an inline, traditional, or angled slats roof)
- Privacy wall(s): None (see this same kit with 1 privacy wall)
- Rafter spacing: Medium (see this same kit with far or close rafter spacing)
Want something completely different? Use our easy design tool to create your own pergola configuration.
Included in this Pergola Wall Mount Kit:
-
2x base brackets (for 4x4 wood) - 2x wall-mount brackets (for 4x4 wood)
- 2x 3-arm post brackets (for 4x4 wood)
- 12x 4x4 insert brackets for 6 roof/wall slats (4x4 wood)
- Stainless steel screws (1.5-inch #10 self-tapping wood screws with pan/round head painted black) for securing wood into brackets
- NOTE: Wood (lumber) and anchoring hardware for securing the base brackets and wall-mount brackets are NOT included and will need to be purchased locally

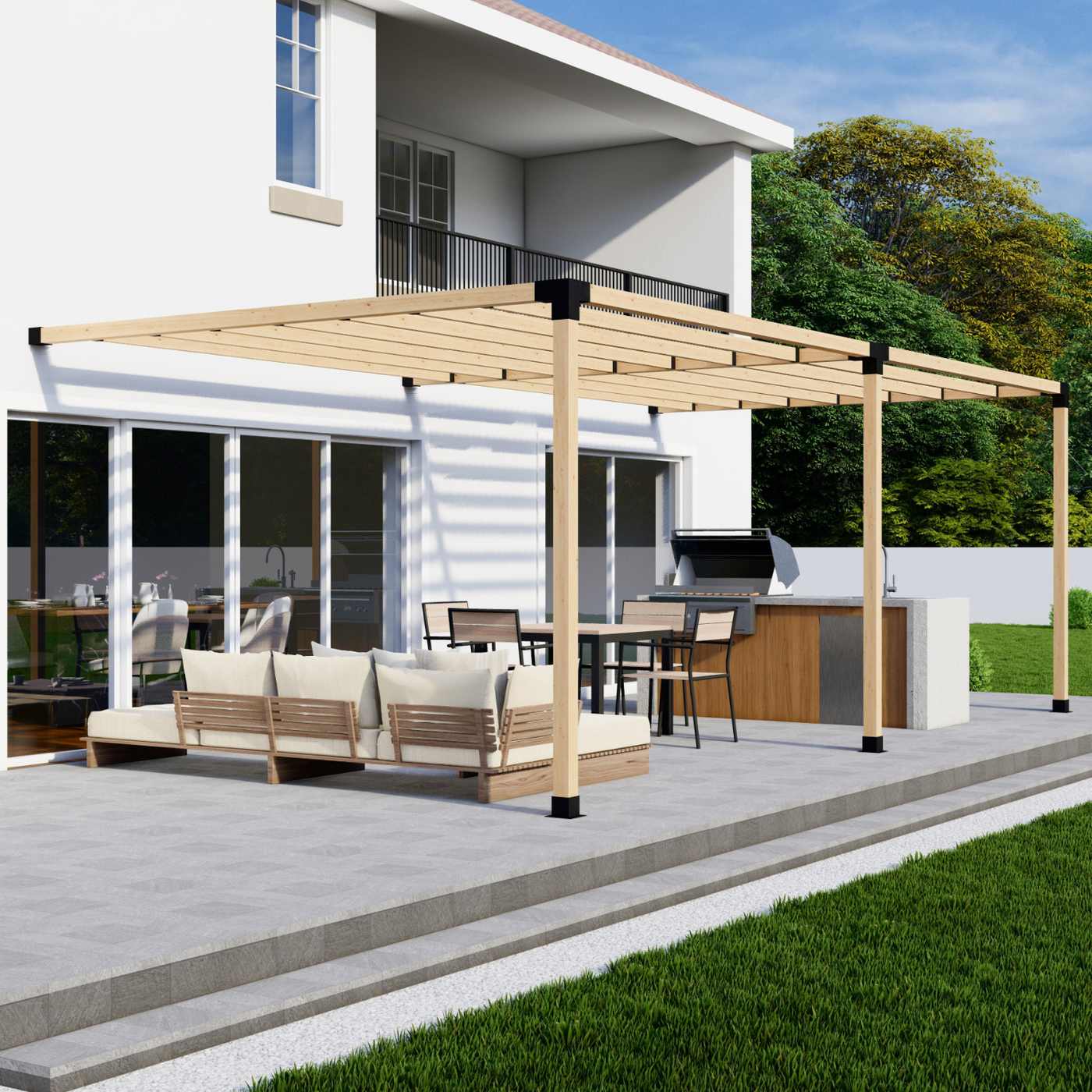

This pergola wall mount kit will accommodate any attached-to-the-house pergola ranging from 4-12 feet by 4-12 feet. The pergola does not need to be the exact dimensions shown in the images on this page.
The DIY-friendly kit includes 12 4x4 insert brackets. While the intent is that all 12 of these brackets will be used to insert 6 square 4x4 roof rafters (12' span with medium spacing), you can use the brackets any way you'd like (i.e. adding a privacy wall or half/partial wall, adding a side railing, increasing the number of slats in a roof/wall section, etc.). You can also purchase additional 4x4 insert brackets here.
Want a Larger 6x6 Frame?
Click here to see this same pergola wall mount kit but for larger 6x6 wood posts and 6x6 roof rafters (instead of 4x4 wood posts and 4x4 roof rafters).
About Our Steel 4x4 Pergola Brackets:
- Made with premium quality steel
- Made of 14-gauge steel (~2.0mm thick)
- Laser-cut, bent and welded
- Advanced weather coating technology to withstand extreme weather conditions
- Pre-drilled holes for securing wood and accessories to brackets
- Made for dressed lumber commonly called 4x4s (actual dimensions are 3.5" x 3.5")
- Includes stainless steel screws (1.5-inch #10 self-tapping wood screws with pan/round head painted black) for securing wood into brackets
- Reduces your pergola build time by as much as 75%
- Backed by our 5-year warranty
- Shipped directly to your doorstep from Boise, Idaho
