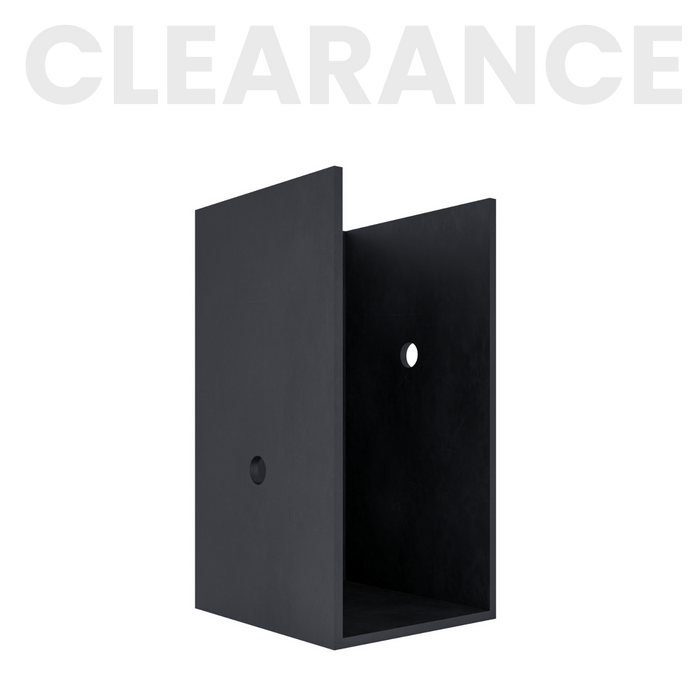

CLEARANCE - Pergola Insert Bracket (for 2x4 Wood Slats)
CHRISTMAS SALE: 20% OFF
60% OFF!
Original price
$20
Original price
Starting at
$20
Original price
$20
Current price
$8
Original price
$20
Starting at $20 $8
Current price
$8
Original price
$20
Availability:
119 in stock, ready to be shipped
Free Shipping - delivered by
-
Coupons - 1 available Reveal
Customize Your Pergola...
THIS IS A CLEARANCE CENTER PRODUCT AND WILL CONTAIN SCRATCHES, DINGS AND/OR DENTS. ALL PRODUCTS IN THE CLEARANCE CENTER ARE SOLD AS-IS AND ARE FINAL SALE... NO RETURNS, REFUNDS, OR EXCHANGES!
Insert brackets are used to insert wood slats (i.e. a 2x4) in between 2 existing wood posts such that the 2x4s are inline and "flush" with the posts. These brackets are extremely versatile and can be used in all of the following ways:
- Inline 2x4 roof rafter kit
- Angled 2x4 shade purlin roof kit
- Privacy walls (straight and angled)
- Side railings (various designs)
The brackets are open at the "top" (at whatever angle you choose to orient them) so the 2x4 wood slat can be inserted "from above" after you've secured the brackets to the existing posts. Thanks to the unique design of these insert brackets, you can orient the 2x4 slats at any angle you choose between -45 degrees and 45 degrees.
Dimensions & Specifications
- Width: 1.75 inches (44.5 mm)
- Depth: 2.0 inches (51 mm)
- Height: 3.6 inches (90.5 mm)
- Inner dimensions of sleeve (open at top): 1.6 x 3.5 inches (41 x 88.5 mm) - made for 2x4 wood slats (which measure 1.5 x 3.5 inches)
- Holes on end plate (secured to post/beam): 2 (one on each end)
- Holes on one side wall: 1 (slightly offset from center)
- Holes on opposite side wall: 1 (slightly offset from center in the other direction)
- Hole size: 0.25 inch (6.35 mm) - ideal for #10 size screws (included)
- Weight: 0.5 pound
- Not included: wood posts
Buy the BRAND NEW version of this bracket here: https://zenpergolas.com/products/2x4-insert-bracket
