Specifications

• amazon bullet 5: Wood (lumber) and specialty hardware for anchoring base brackets and wall-mount brackets not included
• amazon bullet 3: About our steel brackets: 1) 12-gauge steel (approximately 2.6mm thick) - 2) Laser-cut, bent and welded - 3) Advanced weather coating technology to withstand extreme weather conditions - 4) Pre-drilled holes for securing wood and accessories to brackets - 5) Backed by a 5-year warranty
• amazon bullet 2: Attached pergola can be any size up to 24 feet wide (attached to the house), up to 12 feet deep (out from the house) and up to 10 feet tall
• amazon bullet 1: Pergola kit includes: 3 base brackets, 3 wall-mount brackets, 2 3-arm post brackets and 1 4-arm post bracket (all for 6x6" wood posts) + 44 insert brackets for 2x6" wood slats + stainless steel screws (and screw caps) + complimentary drill bits
• amazon bullet 4: The 44 insert brackets allow you to add 22 2x6 roof rafters to your pergola (11 rafters per roof section)
• coverage area sqft: 288
• Assembled Height Ft: 8
• Assembled Width Ft: 24
• Assembled Length Ft: 12
• Required Lumber: As noted above, wood (lumber) is NOT included in this pergola bracket kit (nor is the hardware you'll need to anchor the base and wall-mount brackets).Before you can build your pergola, you'll need to purchase the following items from a local building supply store or lumber yard:- Three (3) 8' long 6x6 posts- Five (5) 12' long 6x6 posts- Twenty-two (22) 12' long 2x6 slats- Anchoring hardware (24 pieces)The estimated cost* for the above lumber and anchoring hardware is $811. Together with the cost of this Zen Pergolas bracket kit, your estimated total all-in cost for your pergola is $2610.*Estimate only - Actual cost will vary depending on the type of wood you buy, your location, local stores & availability and various other factors.
• Text Over Image - Dark: lumber not included
• Preconfigured Slat Spacing: between the roof slats / rafters (see kit w/ far or medium spacing) between roof slats (see far or med spacing)
• Preconfigured Privacy Walls: see this same kit with 1 or 2 privacy walls see kit w/ 1 or 2 privacy walls
• Preconfigured Roof: change roof to: canopies , 2x6s atop beams , 6x6 posts or angled 2x6s
• Roof Brackets Type: INSERT BRACKETS for 2x6 wood
• Max Roof Brackets Count: 44

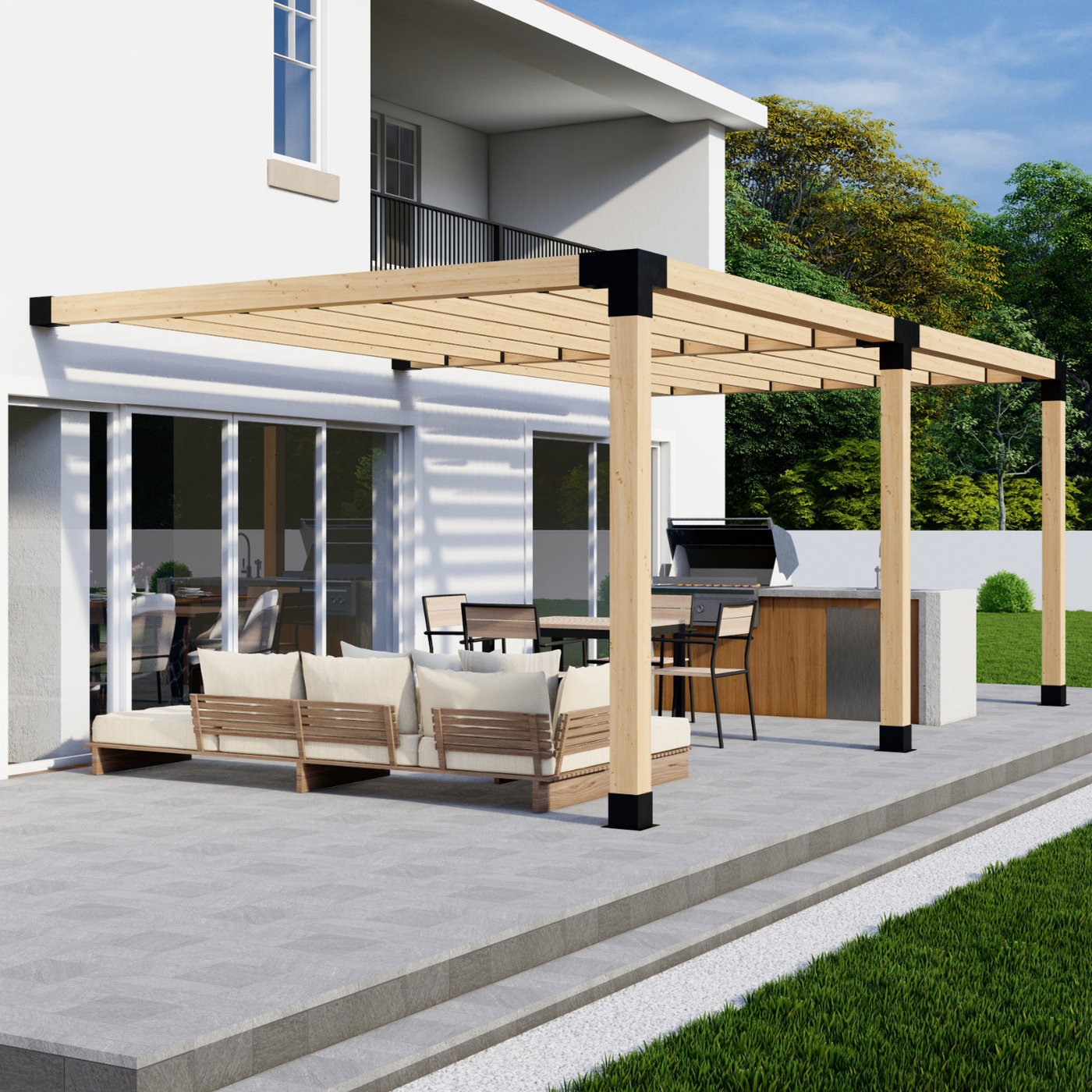

• More Info About Kit: This pergola bracket kit will accommodate any attached pergola ranging from 13-24 feet wide (attached to the house) by 4-12 feet deep (out from the house). The beautiful backyard pergola does not need to be exactly 24' x 12' like in the images on this page. The kit includes 44 2x6 insert brackets . While the images on this page show that all 44 brackets are used to add 22 straight inline roof rafters to your pergola (11 rafters to each of the two roof sections, both a 12' span with closely-spaced rafters), you can use the brackets any way you'd like (i.e. adding a privacy wall or half/partial wall, adding a side railing, installing the roof slats at an angle, etc.). You can also purchase additional 2x6 insert brackets here .
• Preconfigured Spacing Level: CLOSE SPACING
• Preconfigured Wall Count: 0 PRIVACY WALLS
• Preconfigured Roof Type: STRAIGHT 2x6s
• Required Lumber and Cost: As noted above, wood (lumber) is NOT included in this highly-rated DIY pergola kit, nor is the hardware you'll need to anchor the base brackets and wall mount brackets. Before you can build your backyard relax-in-the-shade pergola, you'll need to purchase the following items from a local building supply store or lumber yard (assuming you plan to build a 24' x 12' pergola that is 8' tall): Three (3) 8' long 6x6 posts Five (5) 12' long 6x6 posts Twenty-two (22) 12' long 2x6 slats Anchoring hardware (24 pieces) The estimated cost for the above lumber and anchoring hardware is $811 . This is only an estimate; actual costs will vary depending on the type of wood you decide to buy, your location, local stores & availability, and various other factors.
• Preconfigured Bracket Size: FOR 6x6s + 2x6s
• Pre Key Info Blocks: 2-Block
• Pre Key Info Brackets: 6x6 Frame
• Pre Key Info Roof: Slatted Roof (Straight Inline 2x6s)
• Pre Key Info Type: Wall-Mounted
