DIY Kit for a Corner Pergola - Any Size Up to 24' x 24'
About this Pergola Kit Configuration:
- Type: Free-standing
- Dimensions: Up to 24' x 24' in triangle shape (see the smaller up to 12' x 12' version of this corner pergola kit)
- Bracket size: 6x6 (see the smaller 4x4 version of this kit)
- Roof style: Your choice of 3 spacing options for square 6x6 rafters
Want something completely different? Use our easy design tool to create your own pergola configuration.

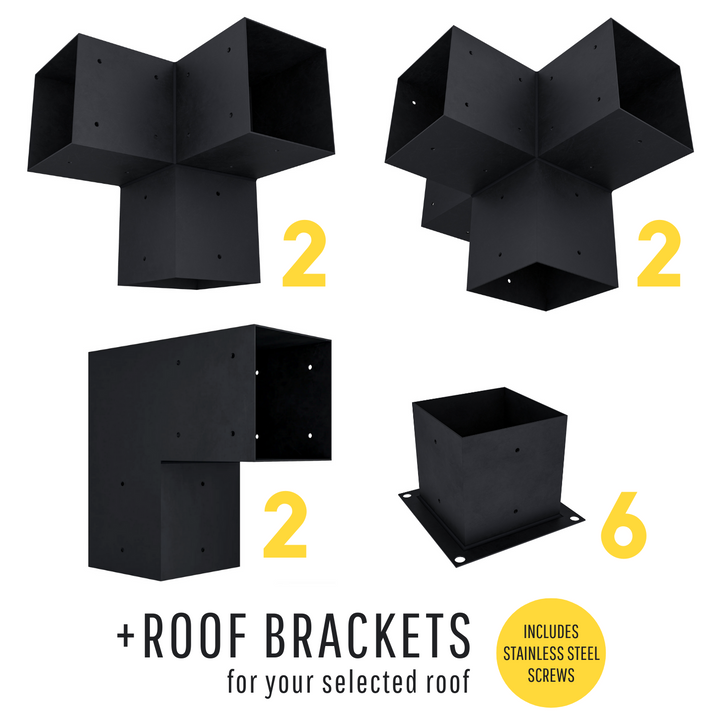

Included in this Freestanding Triangle Corner Pergola Kit:
-
6x base brackets (for 6x6 wood) - 2x L brackets (for 6x6 wood)
- 2x 3-arm post brackets (for 6x6 wood)
- 2x 4-arm post brackets (for 6x6 wood)
- Up to 42x roof brackets (for 6x6 or 2x6 wood) for your choice of roof kits as selected above ⤴
- Stainless steel screws (1.5-inch #10 self-tapping wood screws with pan/round head painted black) for securing wood into brackets
- NOTE: Wood (lumber) and anchoring hardware for securing the base brackets to a solid foundation are NOT included and will need to be purchased locally
Click here to see optional add-ons such as privacy walls, side railings, and corner supports for this freestanding triangle corner pergola kit with roof.
About Our Steel 6x6 Pergola Brackets:
-
Proudly made in the USA with premium American steel
- Made of 12-gauge steel (~2.6mm thick)
- Laser-cut, bent and welded
- Advanced weather coating technology to withstand extreme weather conditions
- Pre-drilled holes for securing wood and accessories to brackets
- Made for dressed lumber commonly called 6x6s (actual dimensions are 5.5" x 5.5")
- Includes stainless steel screws (1.5-inch #10 self-tapping wood screws with pan/round head painted black) for securing wood into brackets
- Reduces your pergola build time by as much as 75%
- Backed by our 5-year warranty
- Shipped directly to your doorstep from Boise, Idaho
What's Not Included?
Wood. Wood is a) very expensive to ship and b) readily available to most people at local home improvement and building supply stores. By buying your wood locally, you also have more options on the exact type of wood you'd like that is appropriate for your area's climate.
Anchoring Hardware. While this pergola kit does include stainless steel wood screws for securing 6x6" wood posts into the brackets, it does not include anchoring hardware for securing the base brackets into a secure base (i.e. cement pad, deck, landscape toppers, concrete footing, etc.). This is because the anchoring hardware you need will vary based on a) what type of material you're going into and b) local building codes.
Required Lumber & Estimated Total Cost
Privacy Walls & Other Add-Ons
Bracket kits for the following add-ons can be added by clicking the links:
Assembly Information
Assembling a Zen Pergola is quite easy (even for novices) and only requires basic tools. Following these simple instructions, it should only take 2-3 hours for you and a helper to assemble your pergola.
5-Year Warranty
We stand behind our products! We will gladly replace any bracket that breaks, cracks, chips or corrodes within 5 years of purchase. Read more about our 5-year limited warranty.
Financing Available
Click here to learn about splitting your purchase up into 4 interest-free payments OR financing your order over up to 36 months.
