High-Quality But Cheap DIY Pergola Kit
⬩ Wall-Mounted 2-Block pergola with a 4x4 Frame
⬩ Slatted Roof (2x4s Atop Beams) + 1 Privacy Wall
About this Pergola Kit Configuration:
- Type: Attached to house (see the free-standing version of this kit)
- Bracket size: 4x4 (see the larger 6x6 version of this kit)
- Dimensions: Up to 24' attached x 12' out from home (see the inverse up to 12' attached x 24' out from home version of this kit)
- Roof style: Traditional w/ rafters atop beams (see this same kit with an inline, square posts or angled slats roof)
- Privacy wall(s): 1 (see this same kit with 0 or 2 privacy walls)
- Roof/wall slat spacing: Far (see this same kit with medium or close spacing)
Want something completely different? Use our easy design tool to create your own pergola configuration.
Included in this Pergola Kit with Roof:
-
3x base brackets (for 4x4 wood) - 3x wall-mount brackets (for 4x4 wood)
- 2x 3-arm post brackets (for 4x4 wood)
- 1x 4-arm post bracket (for 4x4 wood)
- 15x 2x4 rafter brackets for 5 roof rafters (2x4 wood)
- 20x 2x4 insert brackets for 10 wall slats (2x4 wood)
- Stainless steel screws (1.5-inch #10 self-tapping wood screws with pan/round head painted black) for securing wood into brackets
- NOTE: Wood (lumber) and anchoring hardware for securing the base brackets and wall-mount brackets are NOT included and will need to be purchased locally

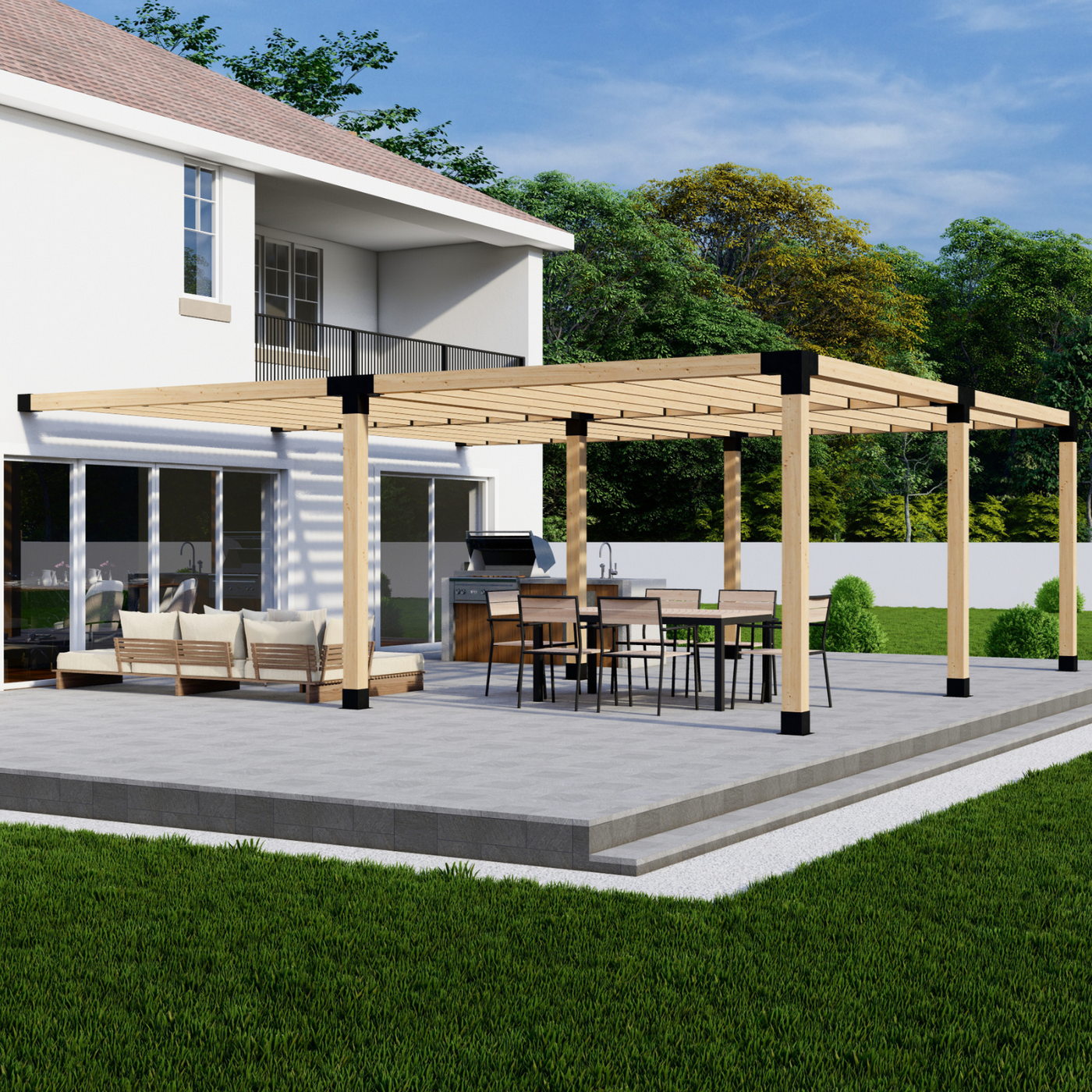

This pergola kit with roof will accommodate any attached-to-the-house pergola ranging from 13-24 feet (attached to the house) by 4-12 feet (out from the home). The pergola does not need to be the exact dimensions shown in the images on this page.
The kit includes 15 2x4 rafter brackets so you can add 5 traditional roof rafters that span both roof sections (12' span with far slat spacing). It also includes 20 2x4 insert brackets so you can add one privacy wall with 10 slats (8' height with far slat spacing). If desired, you could reduce the number of slats on the privacy wall and use some of the insert brackets to add a side railing or another full/partial privacy wall. You can also purchase additional 2x4 insert brackets here.
Want a Larger 6x6 Frame?
Click here to see this same pre-configured pergola kit with roof but with larger 6x6 wood posts and 2x6 roof and wall slats (instead of 4x4 wood posts and 2x4 roof and wall slats).
About Our Steel 4x4 Pergola Brackets:
- Made with premium quality steel
- Made of 14-gauge steel (~2.0mm thick)
- Laser-cut, bent and welded
- Advanced weather coating technology to withstand extreme weather conditions
- Pre-drilled holes for securing wood and accessories to brackets
- Made for dressed lumber commonly called 4x4s (actual dimensions are 3.5" x 3.5")
- Includes stainless steel screws (1.5-inch #10 self-tapping wood screws with pan/round head painted black) for securing wood into brackets
- Reduces your pergola build time by as much as 75%
- Backed by our 5-year warranty
- Shipped directly to your doorstep from Boise, Idaho
