About this Pergola Kit Configuration:

• Type: Attached to house (see the free-standing version of this kit)
• Bracket size: 4x4 (see the larger 6x6 version of this kit)
• Dimensions: Up to 12' attached x 24' out from home (see the inverse up to 24' attached x 12' out from home version of this kit)
• Roof style: Shade canopies (see this same kit with brackets for a wooden roof with inline, traditional, square or angled rafters)
• Privacy wall(s): 1 privacy sun shade (see this same kit with no privacy sun shades or with privacy sun shades on 2 walls)


Want something completely different? Use our easy design tool to create your own pergola configuration.

Included in this Attached Pergola Kit with Shade Canopies (2) and a Privacy Sun Shade Wall:

• 3x base brackets (for 4x4 wood)
• 3x wall mount brackets (for 4x4 wood)
• 2x 3-arm post brackets (for 4x4 wood)
• 1x 4-arm post bracket (for 4x4 wood)
• 2x shade canopies (each up to 12' x 12' in your choice of 2 colors)
• 1x privacy sun shade for a wall (up to 8' x 12' in your choice of 2 colors)
• 36x corner accessory mounts and side accessory mounts (combined) for mounting the 2 shade canopies and the privacy sun shade

• Stainless steel screws (1.5-inch #10 self-tapping wood screws with pan/round head painted black) for securing wood into brackets
• NOTE: Wood (lumber) and anchoring hardware for securing the base brackets to a solid foundation are NOT included and will need to be purchased locally

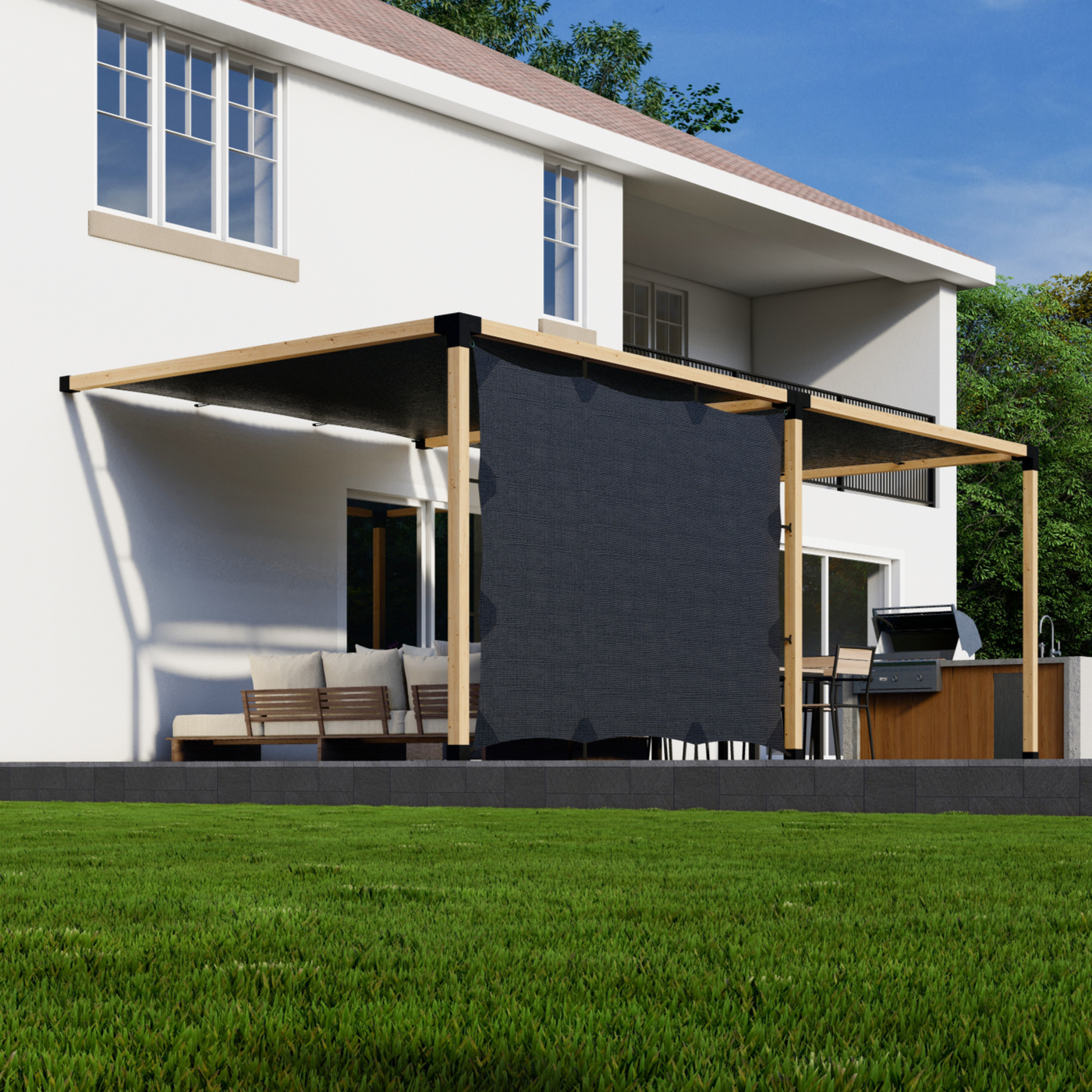

This pergola kit will accommodate any wall-mounted pergola ranging from 8-12 feet (attached to house) by 16-24 feet (out from house). The pergola does not need to be the exact dimensions shown in the images on this page.

The kit includes 2 shade canopies (each up to 12' x 12') in your choice of 2 colors: charcoal (dark gray) or eggshell (a very light beige). The shade canopies are made of fade-resistant 180 GSM High-Density Polyethylene (HDPE) knitted fabric that blocks up to 95% of UV rays and is permeable to prevent rain from pooling on top. Each side of each canopy has 4 straps to keep the canopy tight and prevent drooping. The kit also includes all necessary corner and side accessory mounts (including screws) to secure the canopy straps to the beams of the pergola (and to the house, if desired).

This pergola kit also includes a privacy sun shade for one wall (up to 12' wide x 8' tall), available in the same 2 colors (charcoal and eggshell). The sun shade is made of the same material as the two shade canopies and also comes with all the necessary corner and accessory mounts (including screws) to secure the sun shade to one side of the pergola (and to the house and/or ground, if desired).

Want a Larger 6x6 Frame?

Click here to see this same pre-configured pergola kit but with larger 6x6 wood posts (instead of 4x4 wood posts).

About Our Steel 4x4 Pergola Brackets:

• Made with premium quality steel
• Made of 14-gauge steel (~2.0mm thick)
• Laser-cut, bent and welded
• Advanced weather coating technology to withstand extreme weather conditions
• Pre-drilled holes for securing wood and accessories to brackets
• Made for dressed lumber commonly called 4x4s (actual dimensions are 3.5" x 3.5")
• Includes stainless steel screws (1.5-inch #10 self-tapping wood screws with pan/round head painted black) for securing wood into brackets
• Reduces your pergola build time by as much as 75%
• Backed by our 5-year warranty
• Shipped directly to your doorstep from Boise, Idaho
