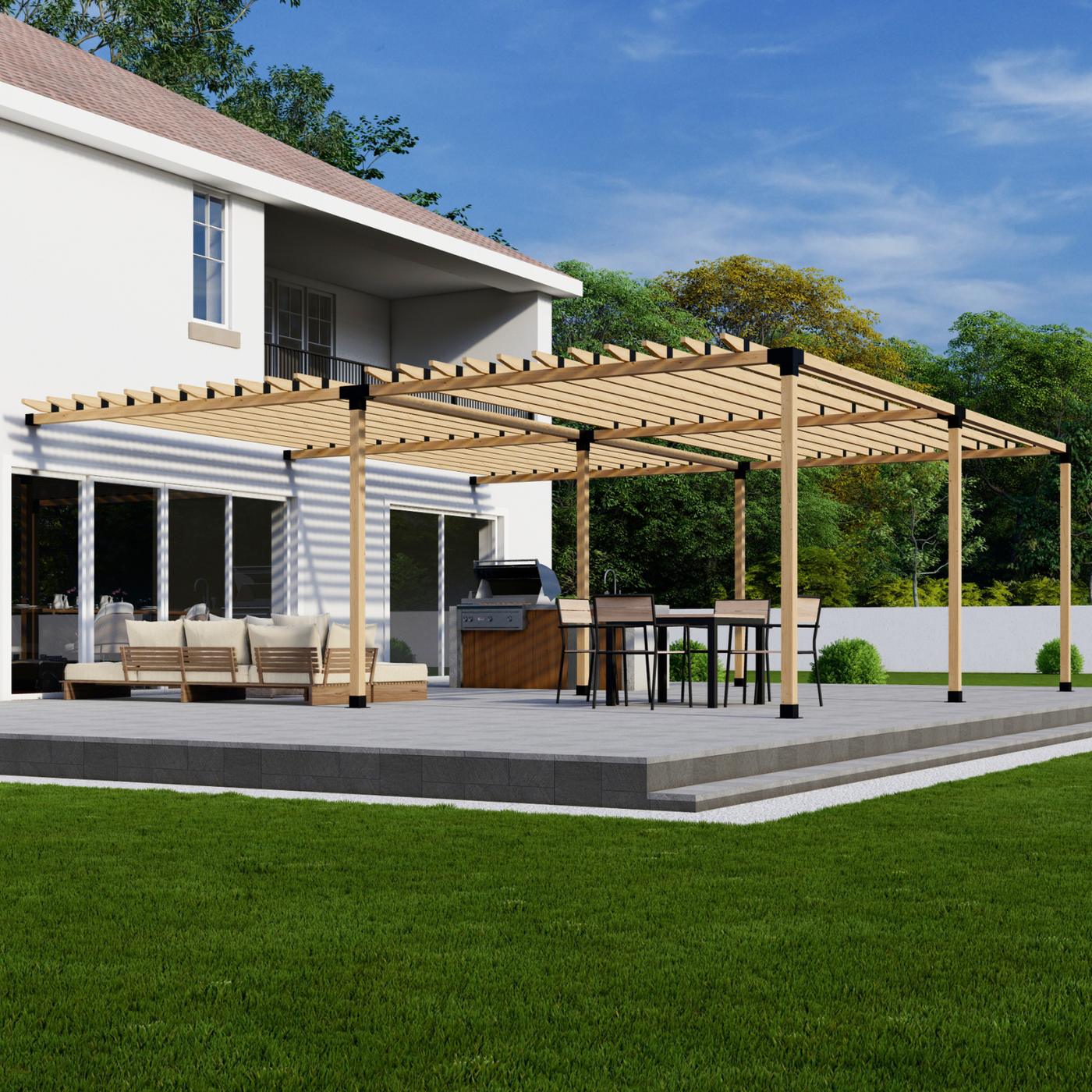

Kit for a Pergola With Overhang Roof
⬩ Wall-Mounted 2-Block pergola with a 4x4 Frame
⬩ Slatted Roof (2x4s Atop Beams)
About this Pergola Kit Configuration:
- Type: Attached to house (see the free-standing version of this kit)
- Bracket size: 4x4 (see the larger 6x6 version of this kit)
- Dimensions: Up to 12' attached x 24' out from home (see the inverse up to 24' attached x 12' out from home version of this kit)
- Roof style: Traditional w/ rafters atop beams (see this same kit with an inline, square posts or angled slats roof)
- Privacy wall(s): None (see this same kit with 1 or 2 privacy walls)
- Rafter spacing: Close (see this same kit with far or medium rafter spacing)
Want something completely different? Use our easy design tool to create your own pergola configuration.
Included in this Weatherproof Pergola Kit:
-
4x base brackets (for 4x4 wood) - 2x wall-mount brackets (for 4x4 wood)
- 2x 3-arm post brackets (for 4x4 wood)
- 2x 4-arm post brackets (for 4x4 wood)
- 44x 2x4 rafter brackets for 22 roof rafters (2x4 wood)
- Stainless steel screws (1.5-inch #10 self-tapping wood screws with pan/round head painted black) for securing wood into brackets
- NOTE: Wood (lumber) and anchoring hardware for securing the base brackets and wall-mount brackets are NOT included and will need to be purchased locally
This weatherproof pergola kit will accommodate any wall-mounted pergola ranging from 4-12 feet wide (attached to the house) by 13-24 feet deep (out from the home). Click here to see a pergola kit with the dimensions flip-flopped.
The kit includes 44 2x4 rafter brackets you can use to insert 11 traditional roof rafters over each of the 2 roof sections (12' span each with close slat spacing). You can purchase additional 2x4 rafter brackets here.
About Our Steel 4x4 Pergola Brackets:
- Made with premium quality steel
- Made of 14-gauge steel (~2.0mm thick)
- Laser-cut, bent and welded
- Advanced weather coating technology to withstand extreme weather conditions
- Pre-drilled holes for securing wood and accessories to brackets
- Made for dressed lumber commonly called 4x4s (actual dimensions are 3.5" x 3.5")
- Includes stainless steel screws (1.5-inch #10 self-tapping wood screws with pan/round head painted black) for securing wood into brackets
- Reduces your pergola build time by as much as 75%
- Backed by our 5-year warranty
- Shipped directly to your doorstep from Boise, Idaho
